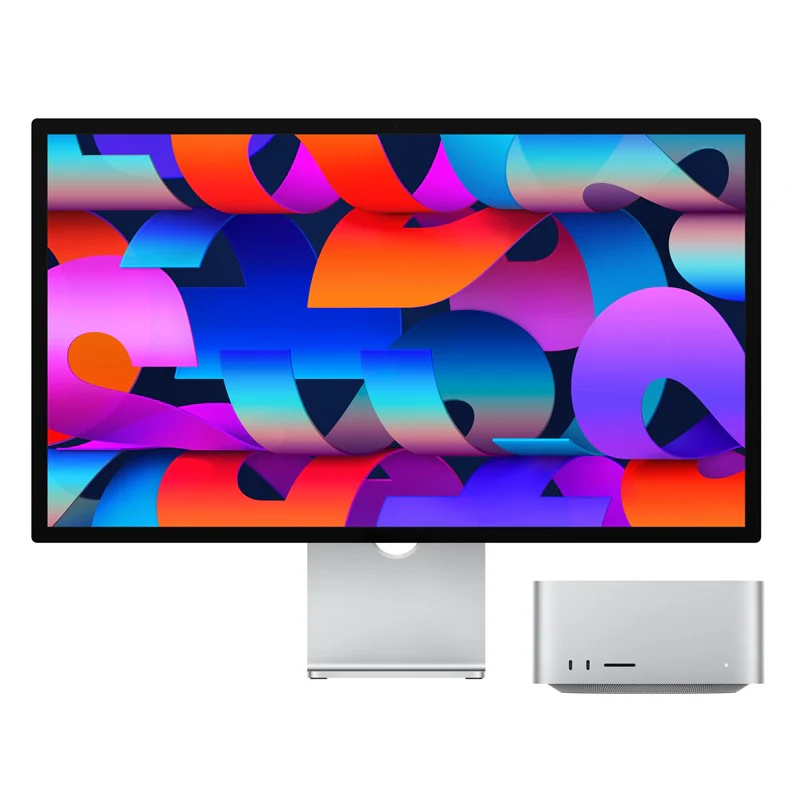

Mac Studio Is An Entirely New Mac Desktop

It packs outrageous performance, extensive connectivity, and new capabilities into an unbelievably compact form, putting everything you need within easy reach and transforming any space into a studio. And it all starts with your choice of the ferociously fast M1 Max or the all-new M1 Ultra — the most powerful chip ever in a personal computer.

M1 Max

M1 Max brings power to tackle challenges of almost any size. Whether you’re running multiple apps, sorting and editing thousands of photos, recording and mixing professional-quality music, or discovering a new exoplanet, the screaming-fast M1 Max has your back.

GPU Performance

Final Cut Pro / Compressor / Affinity Photo / Boris FX Sapphire 2022 / Maxon Cinema 4D / Blackmagic DaVinci Resolve Studio

M1 Ultra

Built from two M1 Max chips, M1 Ultra lets you power through workflows on an unprecedented scale. So you can run complex particle simulations or work with massive 3D environments that were previously impossible to render. And with twice the media engine resources, M1 Ultra can support up to 18 streams of 8K ProRes 422 video playback — something no other personal computer can do.

Power And Efficiency

The incredible power and efficiency of Apple silicon have allowed us to completely reimagine the high-performance desktop. The design inspiration for Mac Studio was simple: to let M1 Max or M1 Ultra — and your creativity — run completely unrestrained, within the smallest possible footprint. It fits perfectly under most displays, putting prodigious power and connectivity at arm’s reach, right on your desk.

M1 Ultra CPU Performance vs. Power

Compared with the fastest 16-core PC desktop chip, M1 Ultra delivers up to 90 percent higher performance in the same power envelope. And M1 Ultra can deliver the PC chip’s peak performance while using 100 watts less power.1

M1 Ultra GPU Performance vs. Power

At its peak, M1 Ultra delivers faster performance than the highest-end GPU available while using 200 watts less power.2

Brand

Apple

Type

Desktop

Color

Silver

Chip

20-core CPU with 16 performance cores and 4 efficiency cores
64-core GPU
32-core Neural Engine
800GB/s memory bandwidth

Memory

128GB

Storage

2TB

Video Support

Simultaneously supports up to five displays
Thunderbolt 4 digital video output supports
Native DisplayPort output over USB‑C
HDMI display video output

Audio

Built-in speaker
3.5 mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output

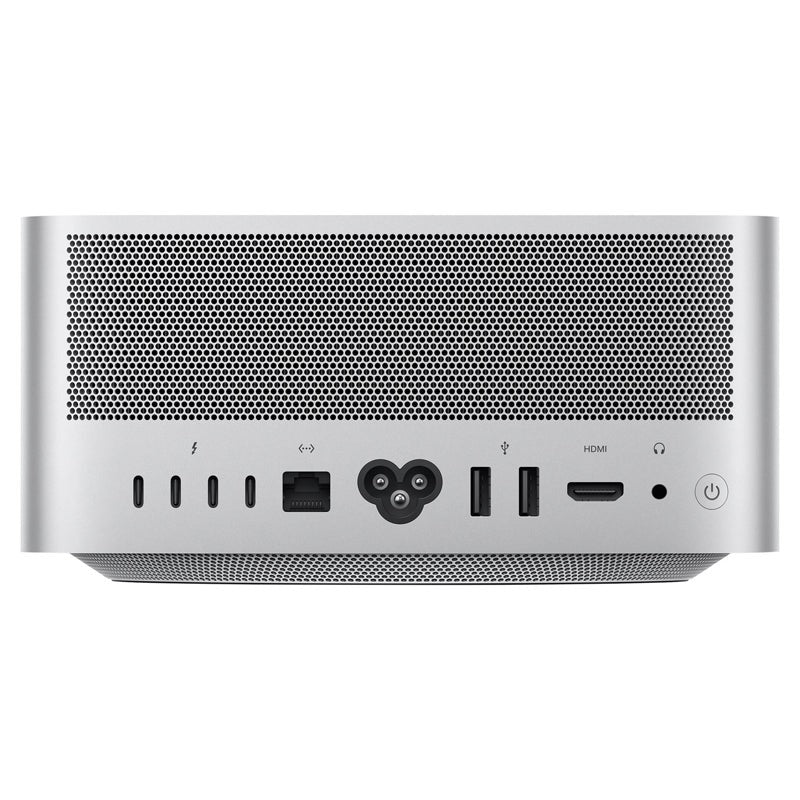

Connections and Expansion

Four Thunderbolt 4 ports with support for:
Thunderbolt 4 (up to 40Gb/s)
DisplayPort
USB 4 (up to 40Gb/s)
USB 3.1 Gen 2 (up to 10Gb/s)
Two USB-A ports (up to 5Gb/s)
HDMI port
10Gb Ethernet
3.5 mm headphone jack
On the front (M1 Max):
Two USB-C ports (up to 10Gb/s)
SDXC card slot (UHS-II)
On the front (M1 Ultra):
Two Thunderbolt 4 ports (up to 40Gb/s)
SDXC card slot (UHS-II)

Communications

Wi-Fi
802.11ax Wi-Fi 6 wireless networking
IEEE 802.11a/b/g/n/ac compatible
Bluetooth
Bluetooth 5.0 wireless technology
Ethernet
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

Height: 3.7 inches (9.5 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)Weight //(M1 Ultra): 7.9 pounds (3.6 kg)

Electrical and Operating Requirements

Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 370W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 90% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)

Operating System

macOS
