ASRock AMD Radeon RX 9070 XT Challenger 16GB GDDR6 Graphics Card

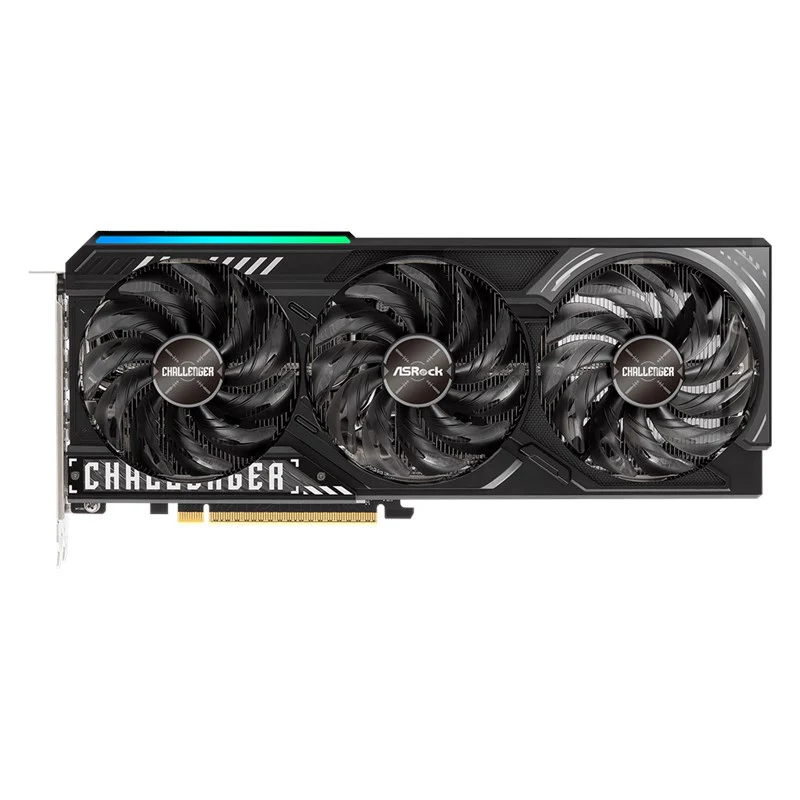

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature.

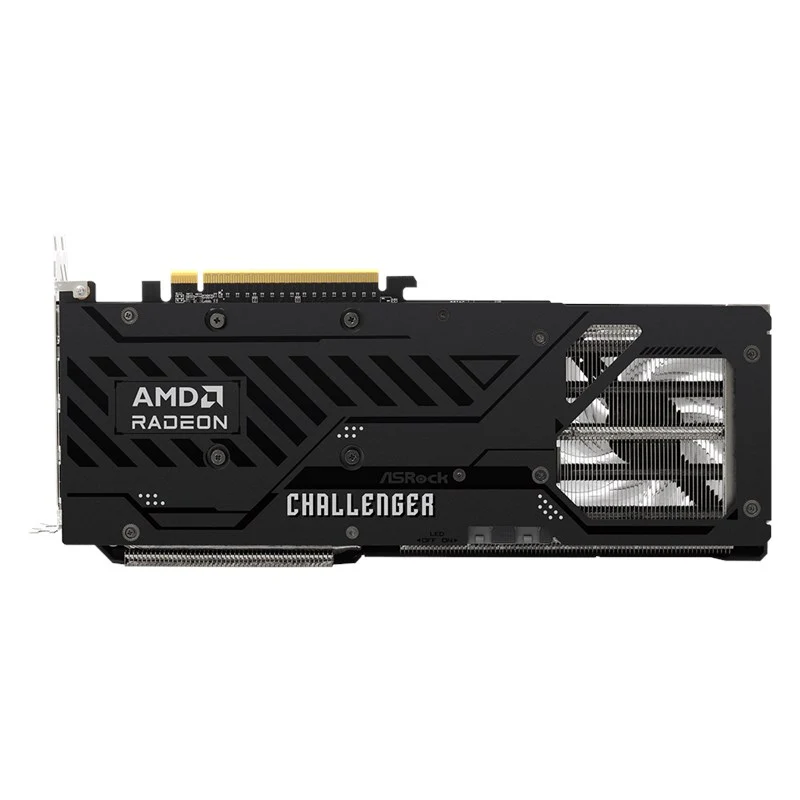

Stylish Metal Backplate

With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

LED Indicator

More Decoration. More Beauty.

Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

LED Switch

Switch on/off as you want.

You can switch LED on or off depends on the scenarios or your need.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

What are the benefits of ASRock AMD Radeon Challenger Graphics Card ?

• Triple Fan Design
• Stylish Metal Backplate
• LED Indicator
• LED Switch
• Striped Axial Fan
• 0db Silent Cooling

Graphics Engine

AMD Radeon RX 9070 XT

Bus Standard

PCI Express5.0 x16

DirectX

12 Ultimate

OpenGL

4.6

Memory

GDDR6 16 GB

Engine Clock

Boost Clock: up to 2970 MHz

Game Clock: 2400 MHz

Stream Processors

4096

Compute Units

64

Memory Speed

20 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution: 7680x4320

Interface

1 x HDMI 2.1b

3 x DisplayPort 2.1a

HDCP

Yes

Multi-view

4

Recommended PSU

Minimum PSU: 750W

Power Connector

2 x 8-pin

Net Weight

1038 g
