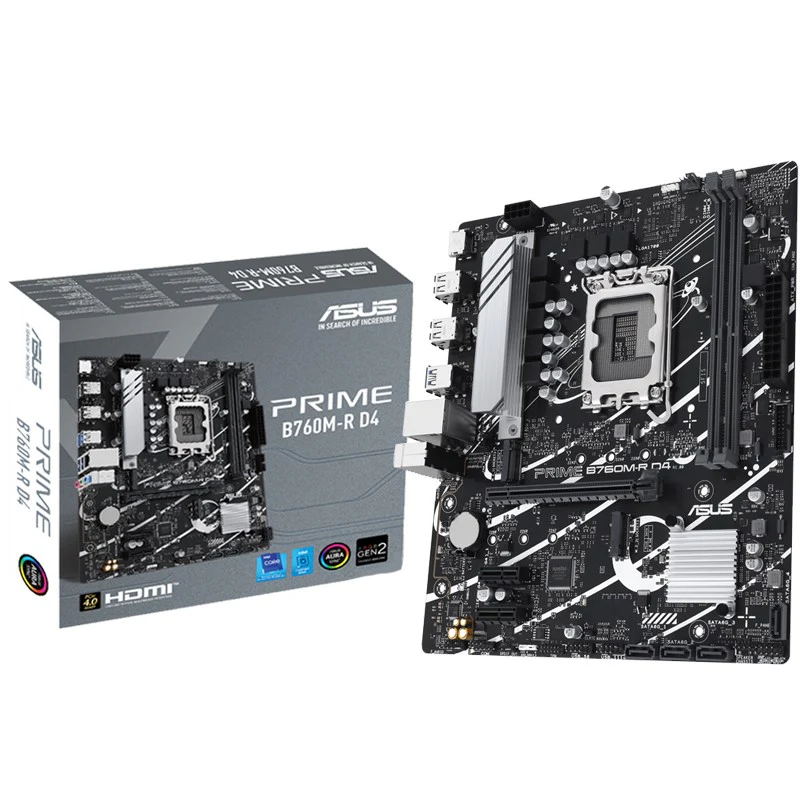

Product image 1
1 / 7
+2

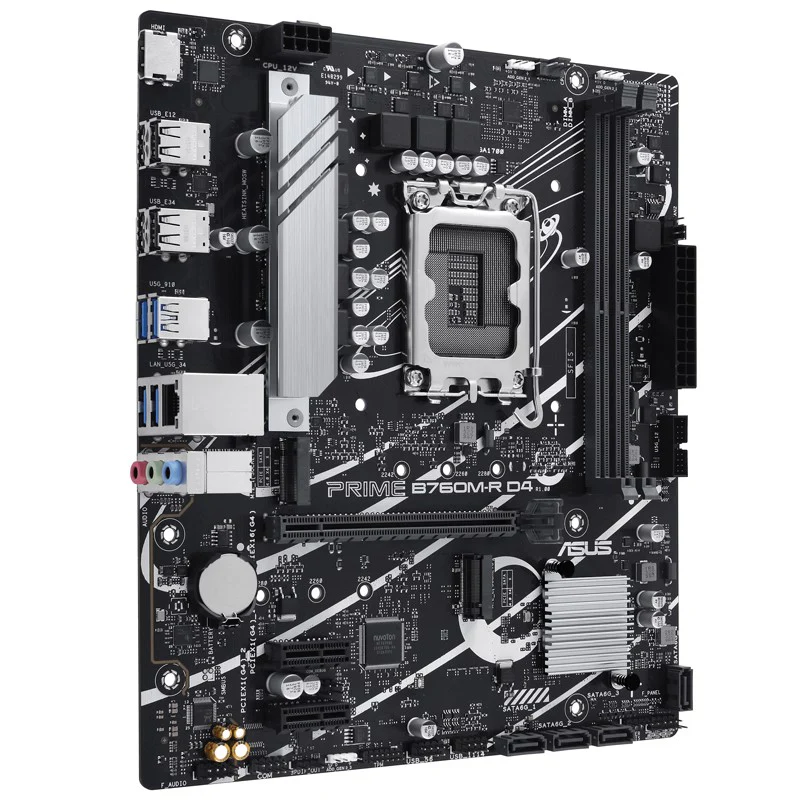

Asus PRIME B760M-R DDR4 micro-ATX Gaming Motherboard

Asus PRIME B760M-R DDR4 micro-ATX Gaming Motherboard

Intel LGA 1700 Socket

Ready for 14th,13th and 12th Gen Intel processors

Ultrafast Connectivity

PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support

Comprehensive Cooling

VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Aura Sync RGB Lighting

Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares

Two-Way AI Noise Cancelation

Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.

Specifications:

Model

PRIME B760M-R D4

CPU

Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors.



Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0.

Chipset

Intel B760 Chipset

Memory

2 x DIMM slots, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory



Dual channel memory architecture



Supports Intel Extreme Memory Profile (XMP) memory module.

Graphics

1 x HDMITM port



Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots



Intel® Core™ Processors

1 x PCIe 4.0 x16 slot

Intel® B760 Chipset

2 x PCIe 4.0 x1 slots.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



4 x SATA 6Gb/s ports



Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5GB Ethernet

USB



Rear USB

(Total 8 ports)



4 x USB 5Gbps ports (4 x Type-A)



4 x USB 2.0 ports (4 x Type-A)

Front USB

(Total 6 ports)



1 x USB 5Gbps header supports 2 additional USB 5Gbps ports



2 x USB 2.0 headers support 4 additional USB 2.0 ports



USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC



Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking



Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding



Premium audio capacitors



Dedicated audio PCB layers

Back Panel I/O Ports

4 x USB 5Gbps ports (4 x Type-A)



4 x USB 2.0 ports (4 x Type-A)



1 x HDMITM port



1 x Realtek 2.5Gb Ethernet port



3 x Audio jacks

Internal I/O Connectors



Fan and Cooling Related

1 x 4-pin CPU Fan header



2 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector



1 x 8-pin +12V Power connector

Storage Related

2 x M.2 slots (Key M)



4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports



2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers



1 x Clear CMOS header



1 x COM Port header



1 x Front panel audio header (F_AUDIO)



1 x S/PDIF Out header



1 x Speaker header



1 x SPI TPM header (14-1pin)



1 x 10-1 pin System Panel header

Special Features



ASUS 5X PROTECTION III

DIGI+ VRM



LANGuard



Overvoltage protection



SafeSlot Core



Stainless-steel back I/O

ASUS Q-Design

Q-DIMM



Q-LED Core



Q-Slot

ASUS EZ DIY

ProCool

ASUS Thermal Solution

VRM heatsink design

Aura Sync

Addressable Gen 2 headers

Software Features



ASUS Exclusive Software

Armoury Crate



Aura Sync



Fan Xpert 2+



Power Saving



Two-Way AI Noise Cancelation



AI Suite 3



DIGI+ VRM



PC Cleaner



ASUS CPU-Z

UEFI BIOS

ASUS EZ DIY



ASUS CrashFree BIOS 3



ASUS EZ Flash 3



ASUS UEFI BIOS EZ Mode

BIOS

128 MB Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor



 9.6" x 8.3" (24.4 cm x 21.1 cm)
