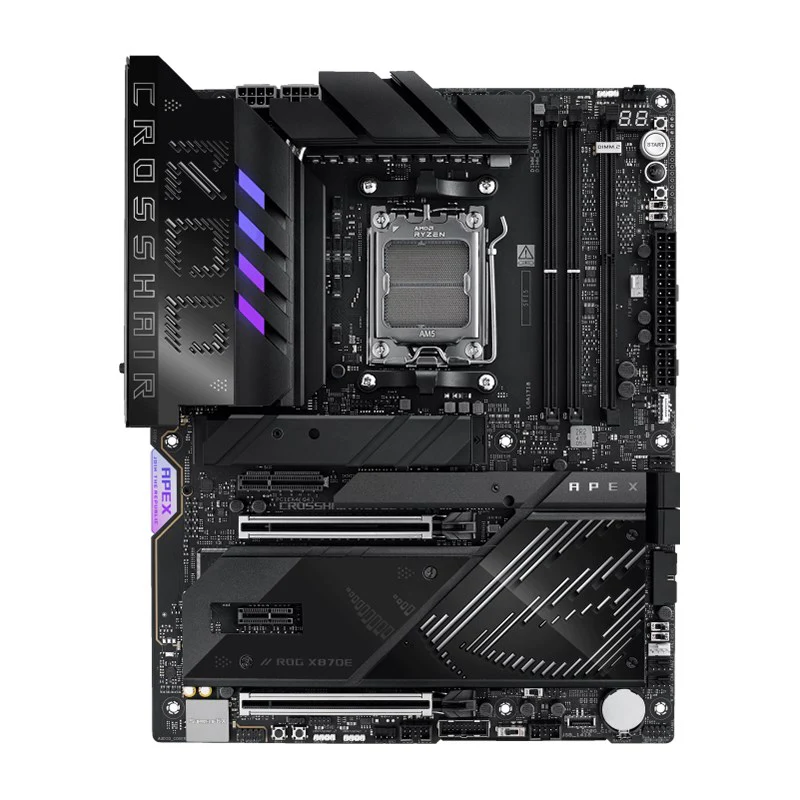

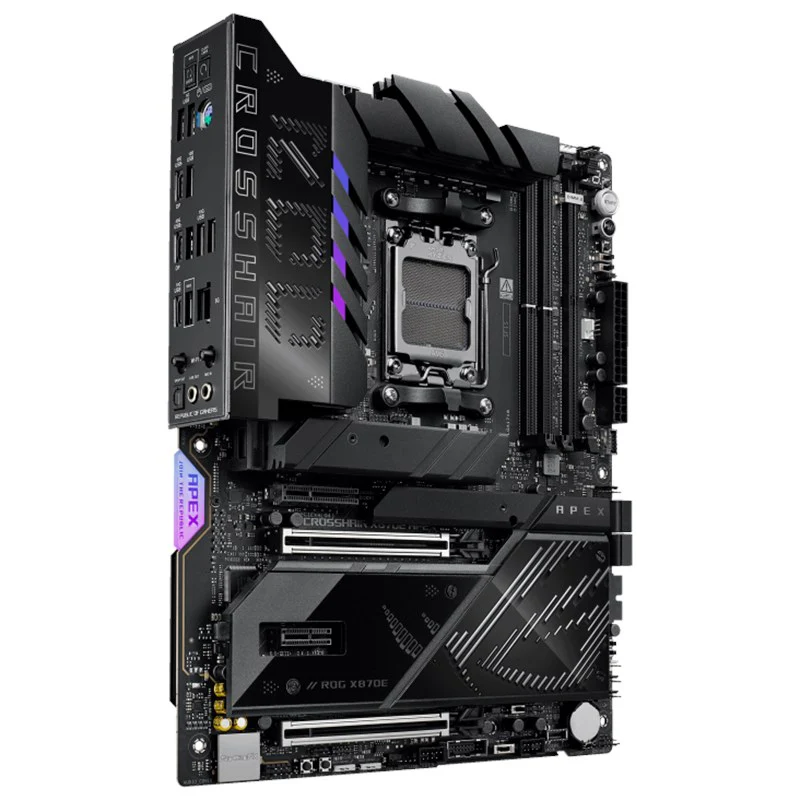

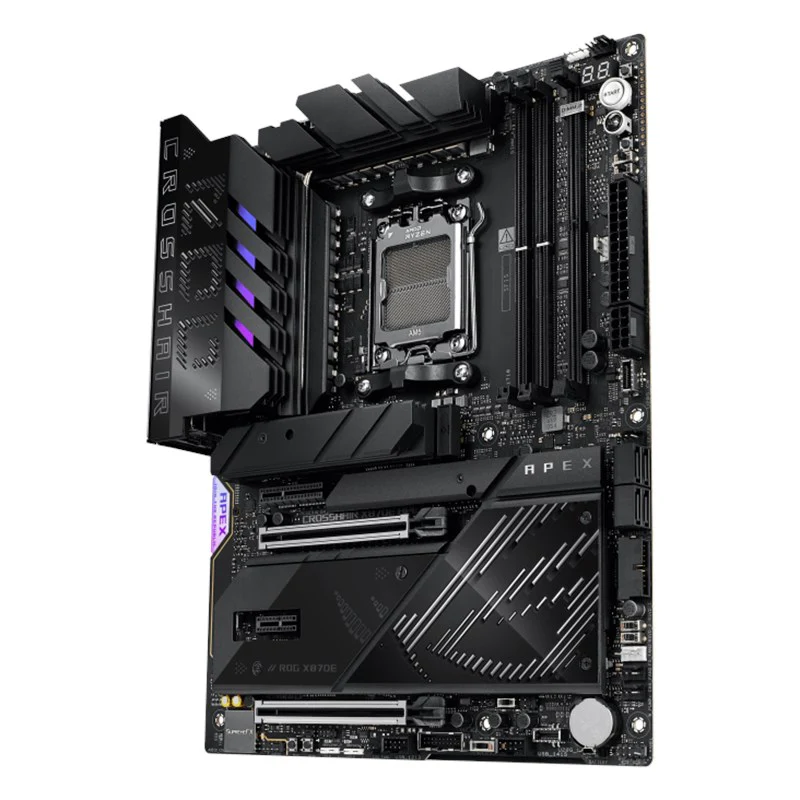

ASUS ROG CROSSHAIR X870E APEX DDR5 ATX Gaming Motherboard

AI OVERCLOCKING

Tuning is now faster and smarter than ever before.

AI COOLING II

Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Dolby Atmos

Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

What are the benefits of ASUS ROG CROSSHAIR X870E APEX Gaming Motherboard ?

• AI Overclocking delivers fast and intelligent performance tuning

• AI Cooling II optimizes cooling and noise with one click

• AI Networking II enhances Wi-Fi 7 speed and reduces latency

• Dolby Atmos provides immersive 3D surround sound

CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD X870E

RAID Support

AMD RAIDXpert2 Technology

Ryzen 9000 Series Processors: RAID 0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

Ethernet

1 x Realtek 5Gb Ethernet

ASUS LANGuard

Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C)

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C)

2 x USB 5Gbps ports (2 x Type-A)

1 x Wi-Fi module

1 x Realtek 5Gb Ethernet port

1 x PS/2 keyboard/mouse combo port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

BIOS

2 x 256 MB Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME

Operating System

Windows 11 (22H2 & later)

Form Factor

ATX Form Factor

12" x 9.6" ( 30.5 cm x 24.4 cm )
