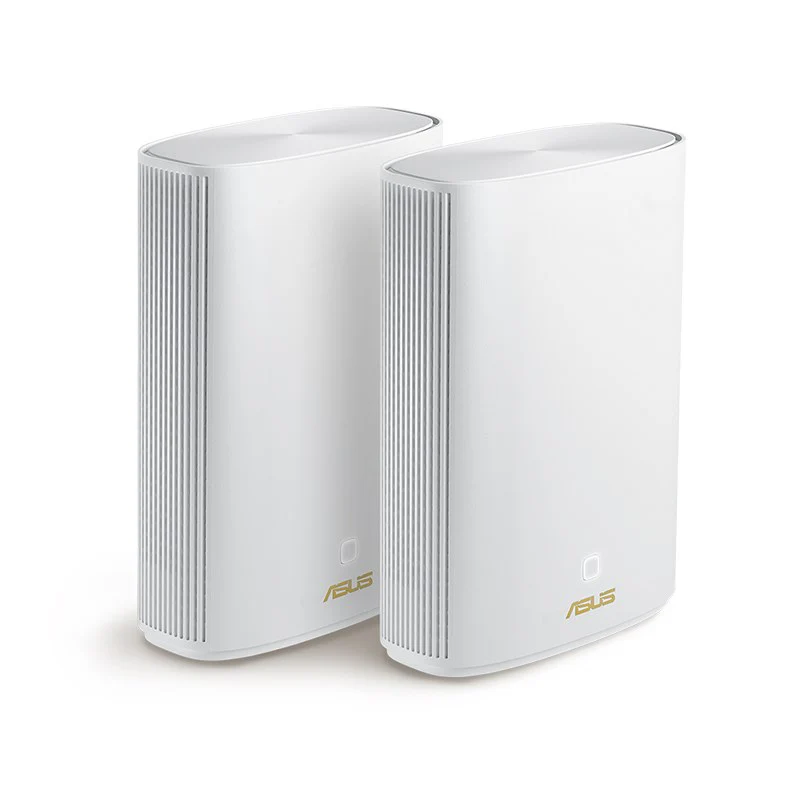

ASUS ZenWiFi AX Hybrid AX1800 Powerline

Whole-Home Coverage

The ZenWiFi AX Hybrid system includes a pair of ASUS AX1800 Wi-Fi routers with built-in 1300 Mbps HomePlug AV2 powerline networking. It features unique technologies that give you superfast, reliable and secure Wi-Fi connections – inside or outside your home!

Ideal For Overcoming Thick Walls

The ZenWiFi AX Hybrid combines Wi-Fi and powerline technologies, providing the ideal solution for homes with thick or metal-reinforced walls that cause Wi-Fi backhaul problems. Backhaul data for the mesh network can be sent via powerline over your home's electrical wiring, so home devices can connect at full AX1800 Wi-Fi 6 speeds. The HomePlug AV2 MIMO standard is almost 2X faster than the previous standard.

True 8K Streaming

ZenWiFi AX Hybrid puts your Wi-Fi into top gear! With a total bandwidth of up to of 1800 Mbps, it's up to 1.4X faster than Wi-Fi 5 routers.

Instant Guard Makes Public Wi-Fi Secure

ASUS Instant Guard uses the power of your ZenWiFi AX Hybrid to add rock-solid VPN security to any public Wi-Fi connections you use. It helps protect your private information such as credit card details, business data, emails and more.

Flexible Network Naming

Uniquely, ZenWiFi lets you choose how you name your Wi-Fi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Make the Internet a Safer Place for Everyone

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes

ASUS ZenWiFi AX Hybrid works perfectly with smart-home services- including Alexa skills.

What are the benefits of ASUS ZenWiFi AX Hybrid AX1800 Powerline ?

• Whole-home mesh coverage delivers fast and reliable Wi-Fi throughout your home.

• Powerline technology helps overcome thick walls and Wi-Fi dead zones for stronger connectivity.

• Wi-Fi 6 speeds up to 1800 Mbps enable smooth 8K streaming, gaming, and browsing.

• Built-in VPN protection secures your data when using public Wi-Fi networks.

• Lifetime AiProtection Pro and parental controls enhance network security and family safety.

• Works with smart home devices and offers flexible Wi-Fi network management.

Network Standard

IEEE 802.3z

IEEE 802.3ab

IEEE 1905.1

IEEE 1901

HomePlug AV2 MIMO

IPv6

IPv4

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

AV1300 HomePlug AV2 MIMO : 1300 Mbps

Antenna

Internal antenna x 4

Processor

64bit 1.2 GHz quad-core processor

Memory

256 MB Flash

512 MB RAM

Operating Frequency

2.4G Hz / 5 GHz

Operating Mode

Wireless router mode, Range extender mode, Access point mode, Media bridge mode

I/O Ports

RJ45 for Gigabit BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 2

USB 3.2 Gen 1 x 1

AC Power Jack with PLC x 1

Buttons

WPS/PLC Combo Button, Reset Button

LED Indicator

Power & Status Combo LED x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
