TP-Link AX3000 Dual-Band Wi-Fi 6 Air Router
TP-Link AX3000 Dual-Band Wi-Fi 6 Air Router |
|

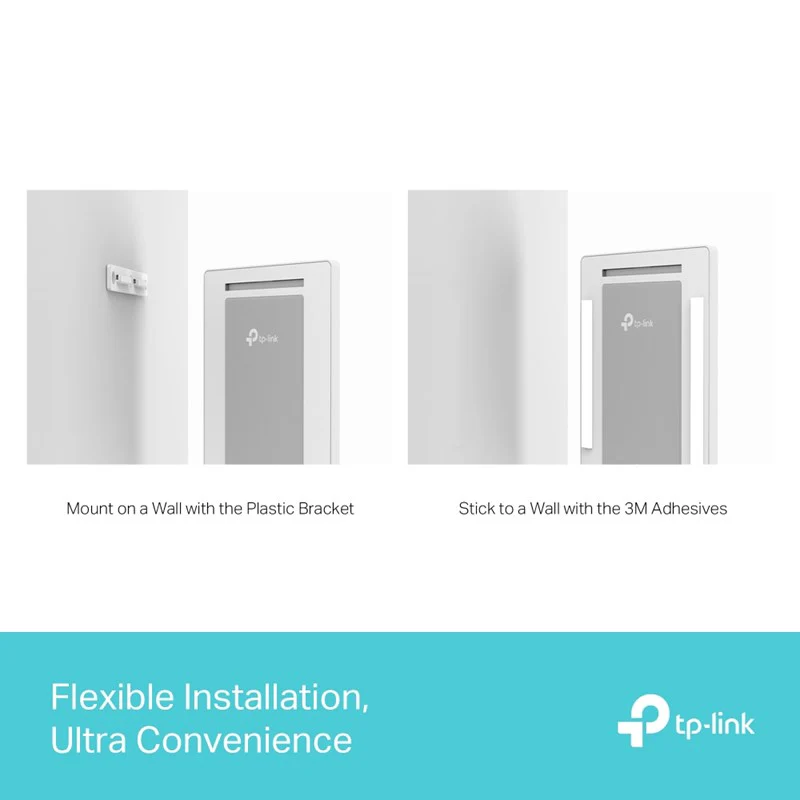

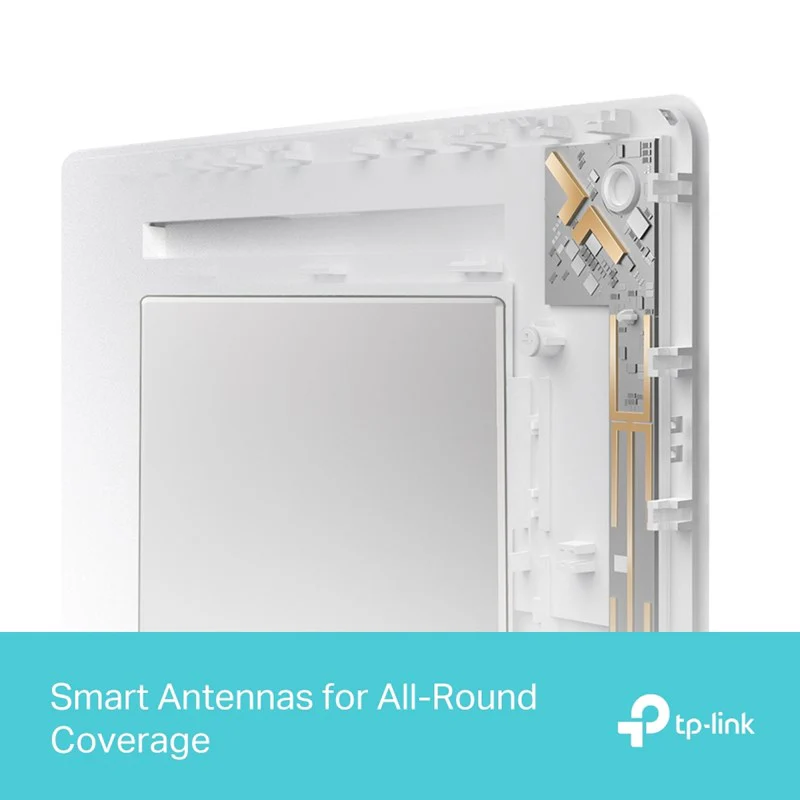

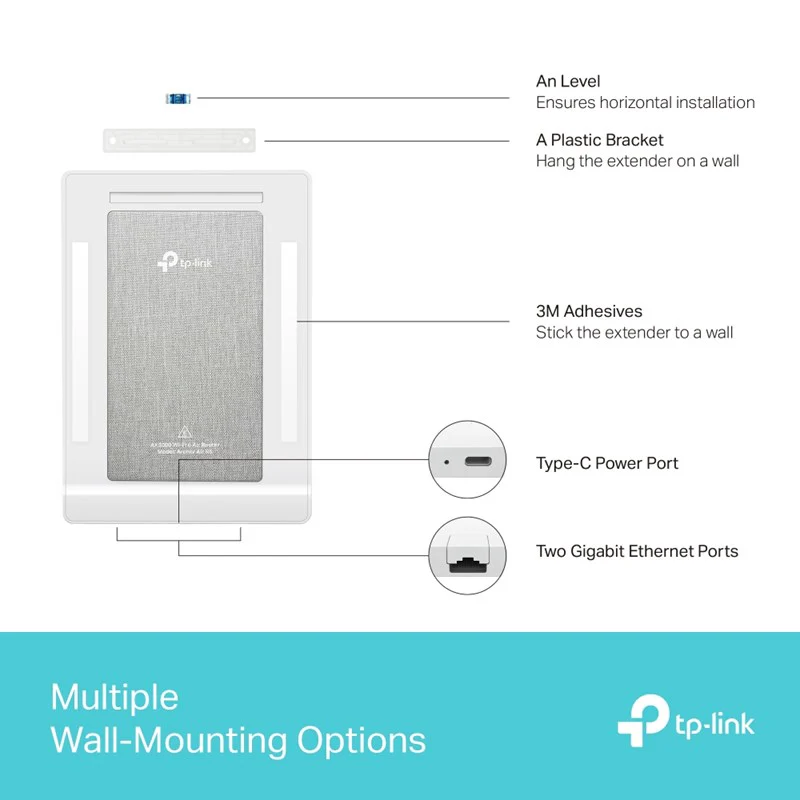

Next-Gen Gigabit Wi-Fi 6 Speed 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads. Smart Antennas Uses intelligent algorithms to auto-detect your devices’ locations and adjust antennas’ direction for all-round stable signals. Ultra-Low Latency Enables more responsive gaming and video chatting. TP-Link HomeShield Enhanced security defends against the latest cyber threats. EasyMesh-Compatible Works with EasyMesh-compatible routers to create a whole home seamless mesh network. Flexible Installation Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket. What are the benefits of TP-Link AX3000 Air Router ?
|
Specification
WIRELESS |
|
Standards and Protocols |
Wi-Fi 6 |
|
|
IEEE 802.11ax/ac/n/a 5 GHz |
|
|
IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX3000 |
|
|
5 GHz: 2402 Mbps (802.11ax, HE160) |
|
|
2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
3 Bedroom Houses |
|
|
4× High-Performance Antennas |
|
|
Multiple antennas form a signal-boosting array to cover more directions and large areas |
|
|
Beamforming |
|
|
Concentrates wireless signal strength towards clients to expand WiFi range |
|
|
High-Power FEM |
|
|
Improves transmission power to strengthen signal coverage |
WiFi Capacity |
High |
|
|
Dual-Band |
|
|
Allocate devices to different bands for optimal performance |
|
|
OFDMA |
|
|
Simultaneously communicates with multiple Wi-Fi 6 clients |
|
|
Airtime Fairness |
|
|
Improves network efficiency by limiting excessive occupation |
|
|
DFS |
|
|
Access an extra band to reduce congestion |
|
|
4 Streams |
|
|
Connect your devices to more bandwidth |
Working Modes |
Router Mode |
|
|
Access Point Mode |
HARDWARE FEATURES |
|
Input Power |
12V/2A |
HARDWARE |
|
Ethernet Ports |
1× Gigabit WAN Port |
|
|
1× Gigabit LAN Port |
Buttons |
WPS Button |
|
|
Reset Button |
TEST DATA |
|
WiFi Transmission Power |
CE: |
|
|
<20dBm(2.4GHz) |
|
|
<23dBm(5.15GHz~5.35GHz) |
|
|
<30dBm(5.47GHz~5.725GHz) |
|
|
FCC: |
|
|
<30dBm(2.4GHz & 5.15GHz~5.825GHz) |
WiFi Reception Sensitivity |
5GHz: |
|
|
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm |
|
|
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm |
|
|
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm |
|
|
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm |
|
|
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm |
|
|
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm |
|
|
11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm |
|
|
11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm |
|
|
2.4GHz: |
|
|
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm |
|
|
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm |
SOFTWARE |
|
Protocols |
IPv4 |
|
|
IPv6 |
