Model Name

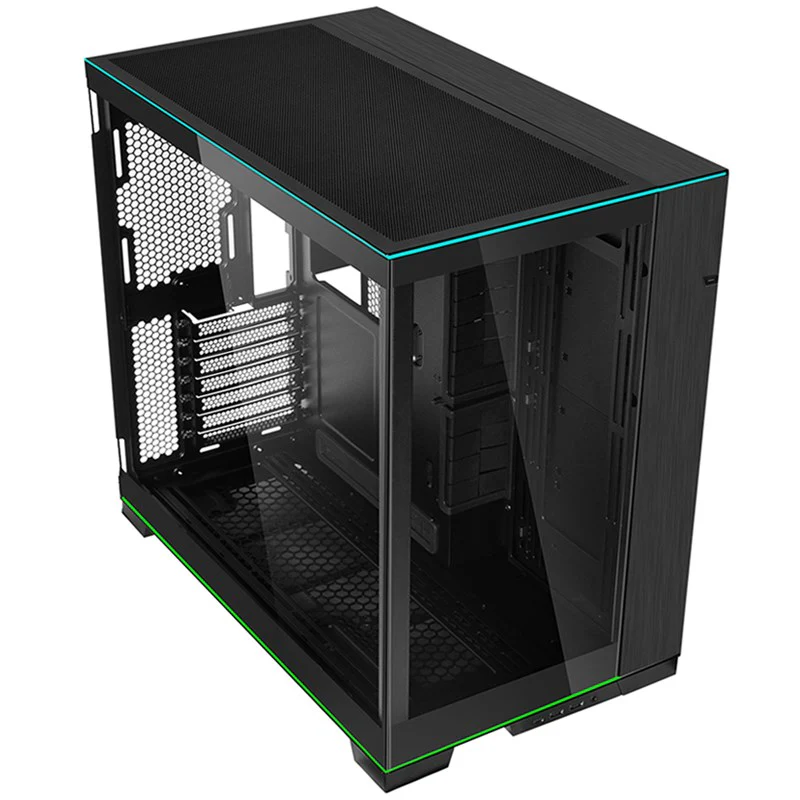

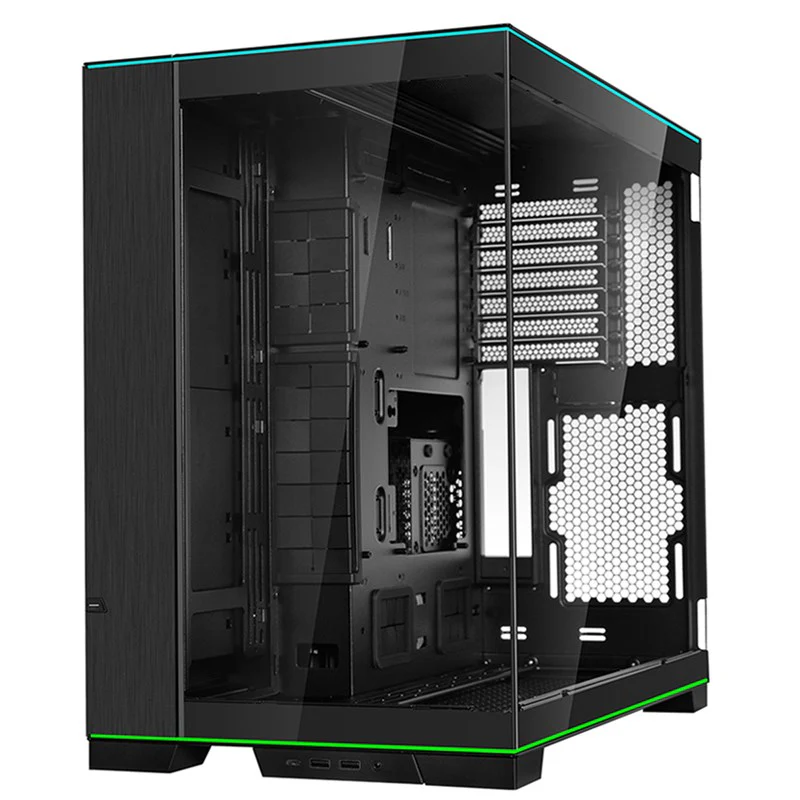

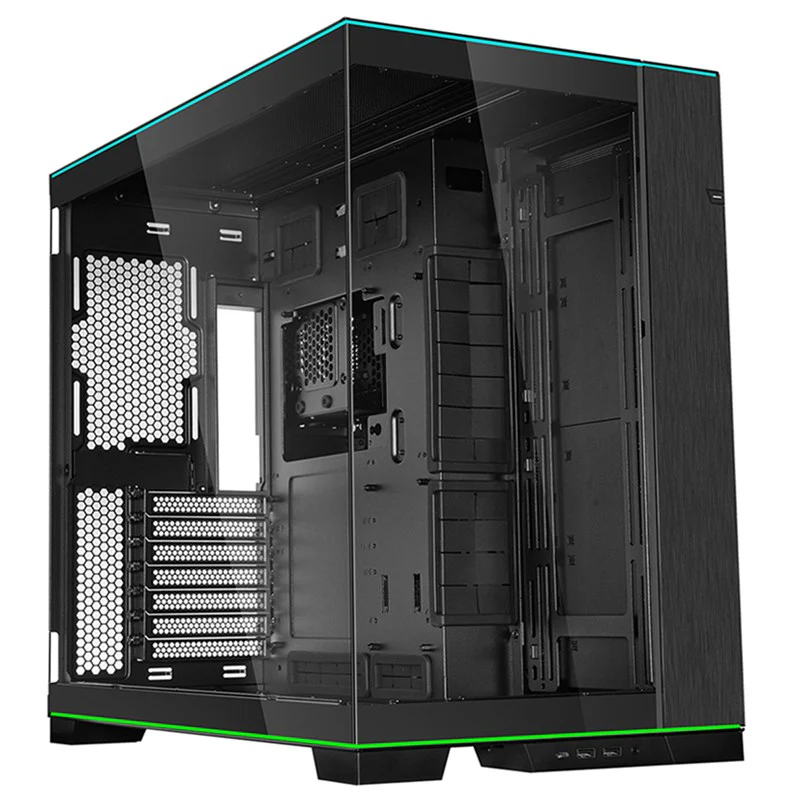

O11 DYNAMIC EVO RGB

Case Type

Tower Chassis

Dimensions

478mm*290mm*471mm (D*W*H)

Material

4.0mm tempered glass、Aluminum 、Steel

Motherboard Support

E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX

Expansion Slot

7

Storage

Side Fan Bracket:2 * 3.5″ HDD or 4 * 2.5″ SSD

Behind MB Tray: 2 * 2.5″ SSD

Hard Drive Cage：2 * 3.5″ HDD or 2.5″ SSD

Radiator Support

Top: 240mm * 1 or 360mm * 1 or 420mm * 1

Side: 240mm * 1 or 280mm * 1 or 360mm * 1

Bottom: 240mm * 1 or 280mm * 1 or 360mm * 1

Fan Support

Top: 120mm * 3 or 140mm * 3

Side: 120mm * 3 or 140mm * 3

Bottom: 120mm * 3 or 140mm * 3

Rear: 120mm * 1

GPU Length Clearance

455.7mm（Max）

CPU Cooler Height Clearance

167mm（MAX）

PSU Support

ATX (Under 220mm)

I/O Ports

USB 3.0 * 2

USB 3.1 TYPE-C * 1

Audio * 1

Color Button * 1

Mode Button *

Brightness Button * 1

Reset Button * 1

Power Button * 1

Dust Filter

1 * Bottom
