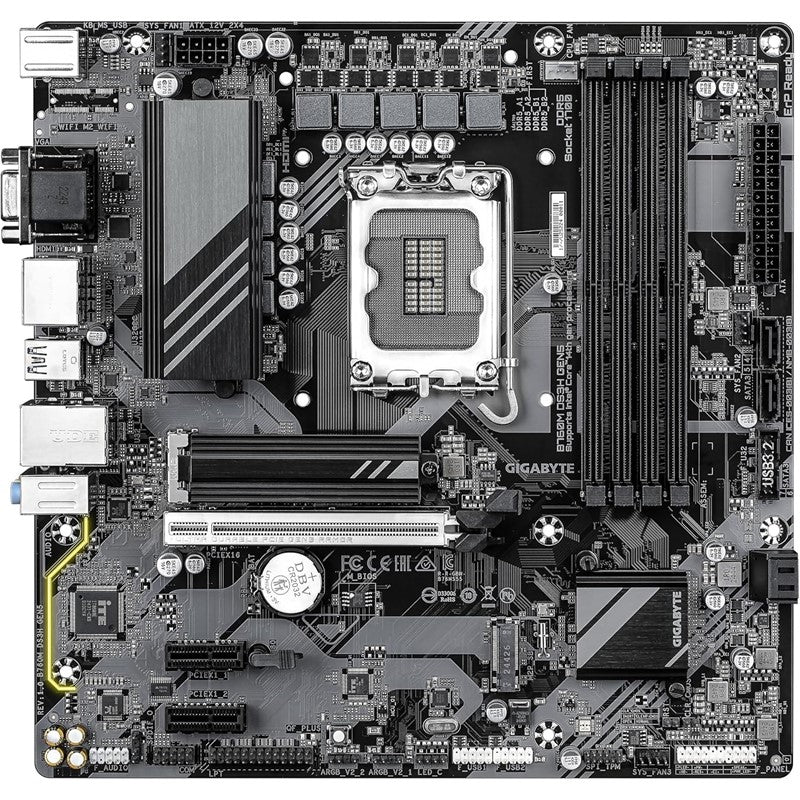

Gigabyte B760M DS3H GEN5 DDR5 Micro ATX Gaming Motherboard - Black

Product image 1
1 / 4

Gigabyte B760M DS3H GEN5 DDR5 Micro ATX Gaming Motherboard - Black

Gigabyte B760M DS3H GEN5 DDR5 Micro ATX Gaming Motherboard

B760M DS3H GEN5 by Gigabyte is a micro ATX motherboard designed for Intel 13th and 14th Gen Core processors.

It supports PCIe 5.0 for faster data transfer with modern GPUs and storage devices.

Built with durable components, the board ensures stable performance for gaming, productivity, or content creation.

Dual-channel DDR5 memory support allows high-speed RAM installations, while multiple M.2 and SATA slots provide flexible storage options.

This motherboard combines performance, connectivity, and cooling in a compact micro ATX form factor.

Key Features

PCIe 5.0 support for high-speed graphics and storage

Durable PCIe UD slots reinforced for heavy GPUs

Dual-channel DDR5 memory support with 4 DIMM slots

2 x M.2 PCIe 4.0 slots with thermal guards

Advanced cooling with VRM Thermal Armor and Smart Fan 6

High-speed 2.5 GbE LAN and multiple USB ports including USB Type-C

RGB Fusion with addressable LED headers for lighting customization

BIOS features like Q-Flash Plus and PCIe EZ-Latch for easier upgrades

Technical Specifications

Micro ATX

CPU Support: Intel 13th and 14th Gen Core processors

Memory: 4 x DDR5 DIMM slots, dual-channel

Expansion Slots: 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x1

Storage: 2 x M.2 PCIe 4.0 slots, 4 x SATA 6Gb/s

LAN: 2.5 GbE

USB Ports: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0

Audio: 8-channel HD Audio with high-end capacitors

Cooling: VRM Thermal Armor, M.2 Thermal Guard, Smart Fan 6

RGB: 2 x addressable LED headers, 1 x RGB LED header

BIOS: Q-Flash Plus, PCIe EZ-Latch

Power Connector: 24-pin ATX, 8-pin CPU UD connector

Gameplay Experience

The motherboard keeps components cool under heavy load with multiple fan headers and thermal guards.

Memory upgrades are straightforward with 4 DIMM slots supporting DDR5 speeds.

PCIe 5.0 slot ensures future-proof GPU installations.

Q-Flash Plus and EZ-Latch make BIOS updates and GPU installation simpler.

Smart Fan 6 allows precise fan control, reducing noise while keeping temperatures low.

The RGB headers let you sync lighting across your build for a personalized look.

Specifications:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors



(Go to GIGABYTE's website for the latest CPU support list.)



L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

14th and 13th Generation Intel® Core™ i9/i7 Processors:



Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules



13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:



Support for DDR5 4800/4400 MT/s memory modules



4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory



Dual channel memory architecture



Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)



Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Support for Extreme Memory Profile (XMP) memory modules



(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:



- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz



- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz



* Support for HDMI 2.1 version and HDCP 2.3.



** Support for native HDMI 2.1 TMDS compatible ports.



- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz



* Support for DisplayPort 1.2 version and HDCP 2.3



- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz



* Support for DisplayPort 1.2 version.



(Graphics specifications may vary depending on CPU support.)



Support for up to quad-display at the same time

Audio

Realtek® Audio CODEC



High Definition Audio



2/4/5.1/7.1-channel



* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU:



- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16



* The PCIEX16 slot can only support a graphics card or an NVMe SSD.



Chipset:



- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:



- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)



Chipset:



- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)



- 4 x SATA 6Gb/s connectors



RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:



- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support



- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)



- 2 x USB 2.0/1.1 ports on the back panel



Chipset+USB 2.0 Hub:



- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector



1 x 8-pin ATX 12V power connector



1 x CPU fan header



3 x system fan headers



2 x addressable RGB Gen2 LED strip headers



1 x RGB LED strip header



2 x M.2 Socket 3 connectors



4 x SATA 6Gb/s connectors



1 x front panel header



1 x front panel audio header



1 x USB 3.2 Gen 1 header



2 x USB 2.0/1.1 headers



1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



1 x serial port header



1 x parallel port header



1 x S/PDIF Out header



1 x Q-Flash Plus button



1 x reset jumper



1 x Clear CMOS jumper



Back Panel Connectors



2 x USB 2.0/1.1 ports



1 x PS/2 keyboard/mouse port



1 x D-Sub port (Note)



1 x HDMI port (Note)



2 x DisplayPorts (Note)



3 x USB 3.2 Gen 1 ports



1 x USB Type-C® port, with USB 3.2 Gen 2 support



1 x RJ-45 port



3 x audio jacks



(Note) Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip



H/W Monitoring



Voltage detection



Temperature detection



Fan speed detection



Water cooling flow rate detection



Fan fail warning



Fan speed control



* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash



Use of licensed AMI UEFI BIOS



PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)



* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.



Support for Q-Flash



Support for Q-Flash Plus



Support for Smart Backup
