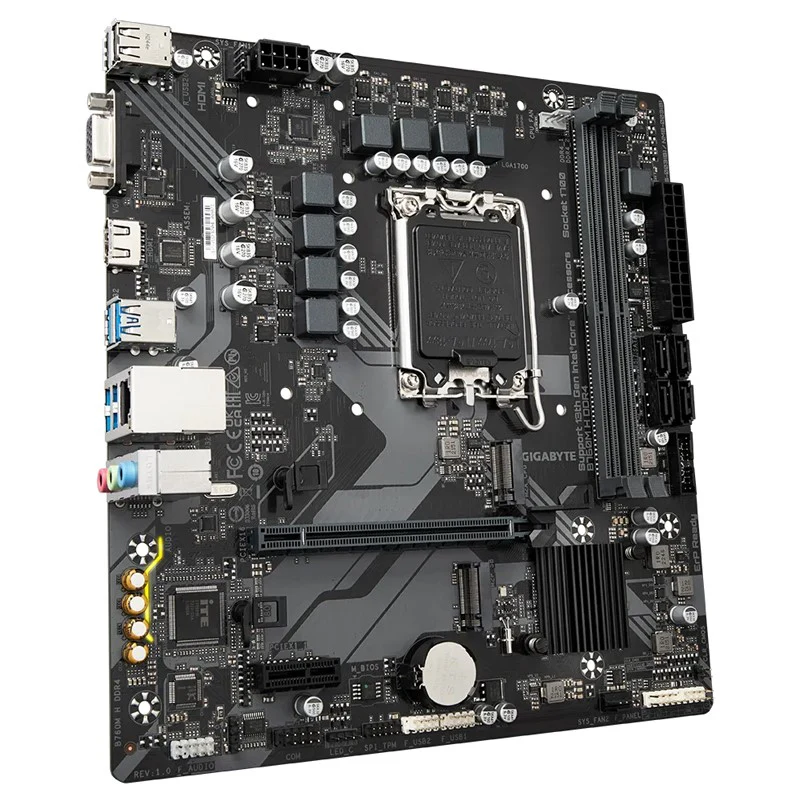

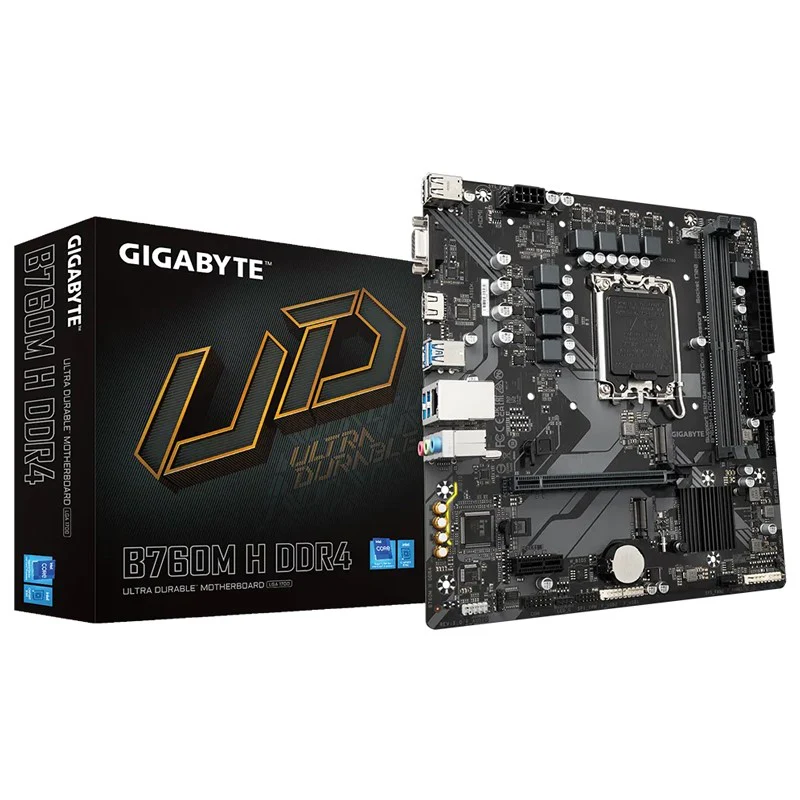

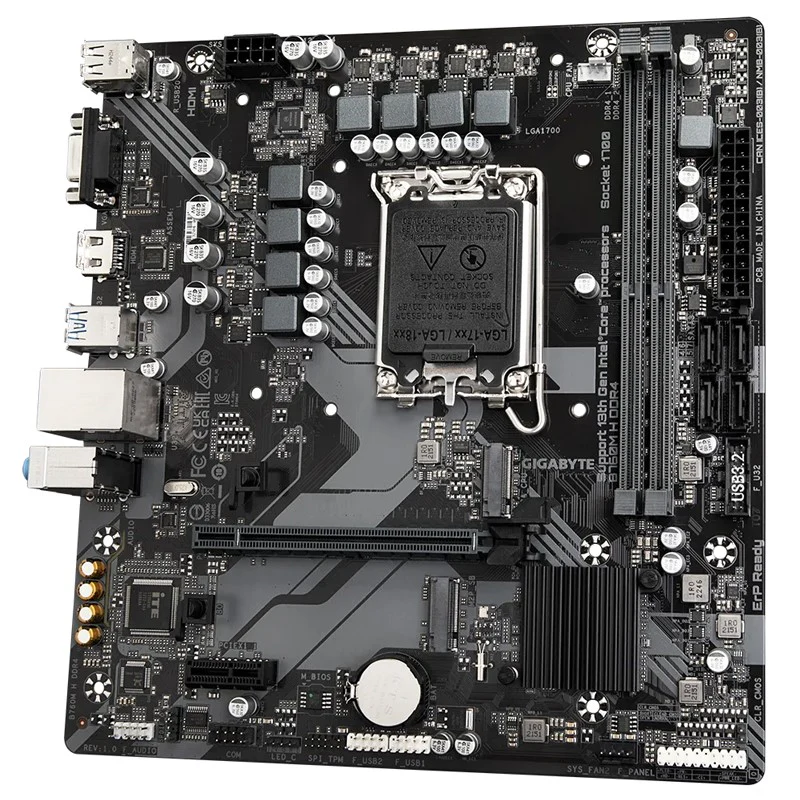

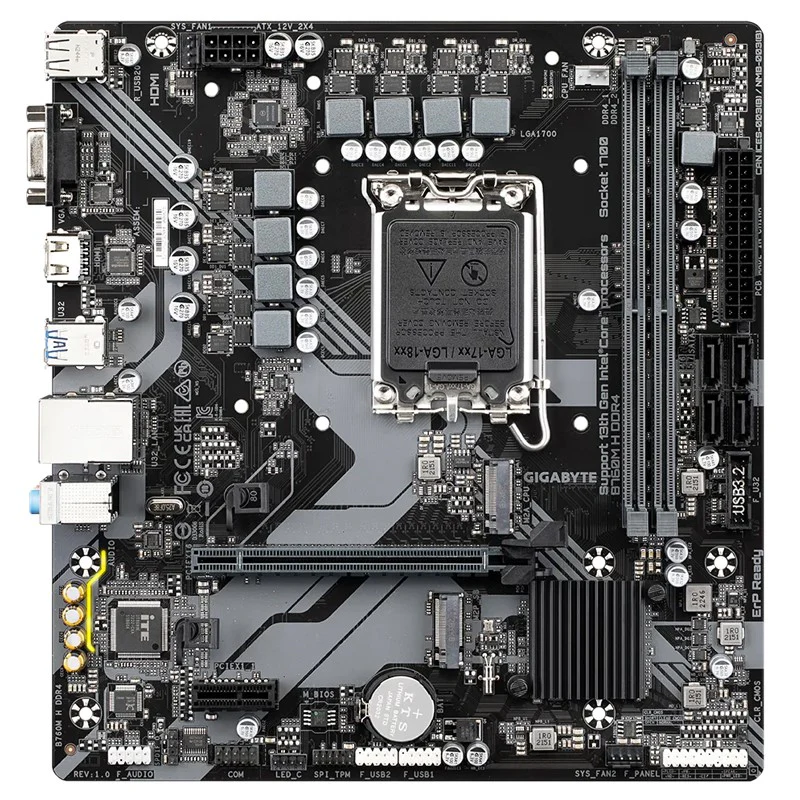

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard

Product image 1
1 / 5

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard

6+1+1 Phases Hybrid Digital VRM Design

6+1+1 Phases Low RDS(on) MOSFETs

Premium Choke and Capacitors to improve transient response and minimize oscillation

Connectivity

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.

Personalization

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when you remove the graphics card in the PCIe slot.

Specifications:

CPU Socket

LGA1700

CPU Support

14th, 13th, and 12th Gen Intel Core, Pentium Gold, Celeron Processors

Chipset

Intel B760 Express Chipset

Memory

DDR4 3200/3000/2933/2666/2400/2133 MT/s, up to 64GB

Graphics

Intel HD Graphics (D-Sub, HDMI)

Audio

Realtek Audio CODEC, High Definition Audio

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

1 x PCIe x16 (4.0), 1 x PCIe x1 (3.0)

Storage Interface

1 x M.2 (PCIe 4.0), 1 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s, RAID 0/1/5/10

USB Ports

6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1

Internal Connectors

1 x 24-pin ATX main power connector



1 x 8-pin ATX 12V power connector



1 x CPU fan header



2 x system fan headers



1 x RGB LED strip header



2 x M.2 Socket 3 connectors



4 x SATA 6Gb/s connectors



1 x front panel header



1 x front panel audio header



1 x S/PDIF Out header



1 x USB 3.2 Gen 1 header



2 x USB 2.0/1.1 headers



1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



1 x serial port header



1 x Clear CMOS jumper

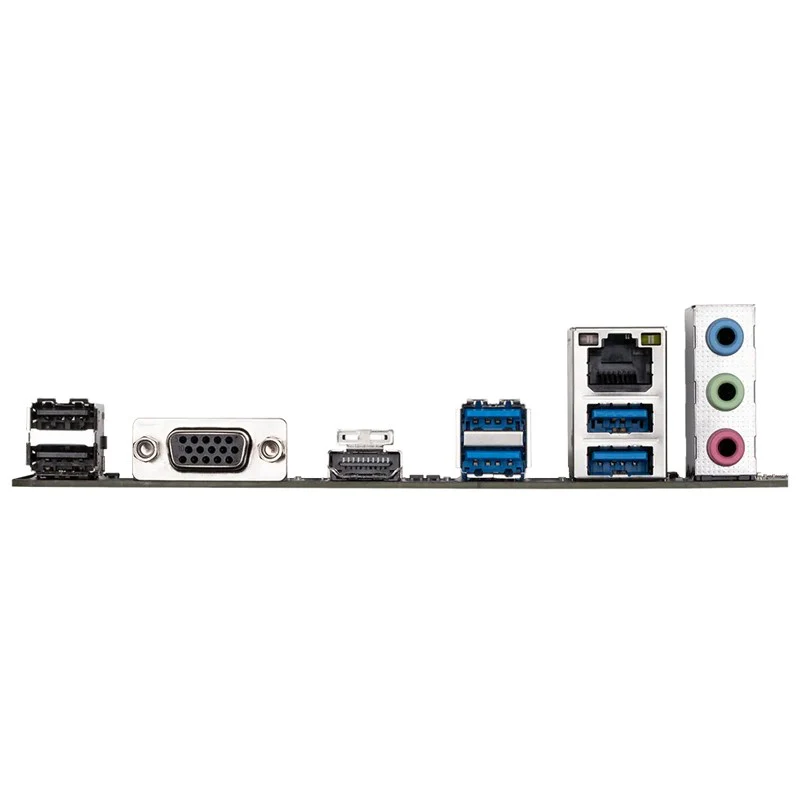

Back Panel Connectors

2 x USB 2.0/1.1 ports



1 x D-Sub port



1 x HDMI port



4 x USB 3.2 Gen 1 ports



1 x RJ-45 port



3 x audio jacks

I/O Controller

iTE I/O Controller Chip

BIOS

AMI UEFI BIOS, 128 Mbit flash

H/W Monitoring

Voltage, Temperature, Fan speed, Water cooling flow rate

Unique Features

GIGABYTE Control Center (GCC), Q-Flash

Bundled Software

Norton Internet Security, LAN bandwidth management

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX (23.0cm x 21.5cm)
