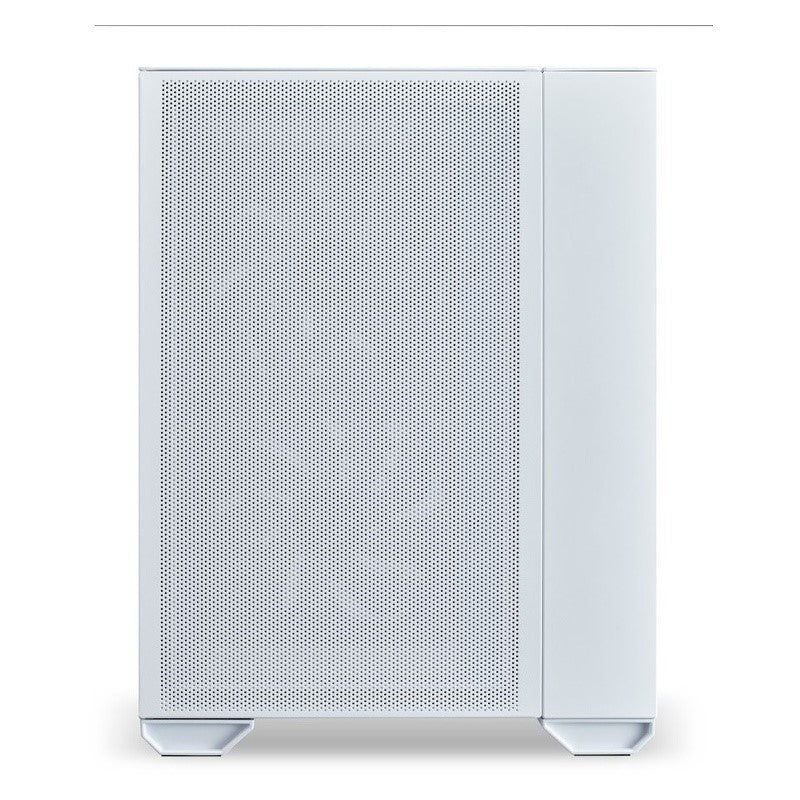

Superfine Mesh Front, Top, And Side Panels

The mesh design on the front, top and side panels of the O11 AIR MINI have been optimized to allow maximum airflow from different sides of the case to the temperatures stable and low. The superfine mesh also acts as a dust filter to avoid dust buildup inside the case.

2 x 140MM Front Fans And 1 X 120mm Rear Fan Included

The O11 AIR MINI comes with 2 x 140mm PWM front fans and 1 x 120mm PWM rear fan pre-installed straight out of the box. Get your system up and running faster with ease.

Size Comparision O11 Air Mini vs. O11 Air

But interior space is just as accommodating and improves on cooling performance.

Air Cooling

The O11 AIR MINI is ideal for air cooling builds, as it has enough clearance for up to 170mm for larger tower coolers.

Unobstructed Airflow For Air Or Air Cooling Setups

Designed with an optimized mesh pattern on the front, top and side panels, the O11 AIR MINI provides exceptionally focused airflow and overall system airflow for both air cooling setups and AIO setups. The spacious interior allows for different fan or radiator configurations to maximize the cooling temperature.

Built With The Finest Materials

The O11 AIR MINI black has a premium hairline brushed aluminum that looks as good as it feels. The O11 AIR MINI white has a minimalist white powder coating. The durable tempered glass allows for easy and carefree maintenance and for showing off the internal components.

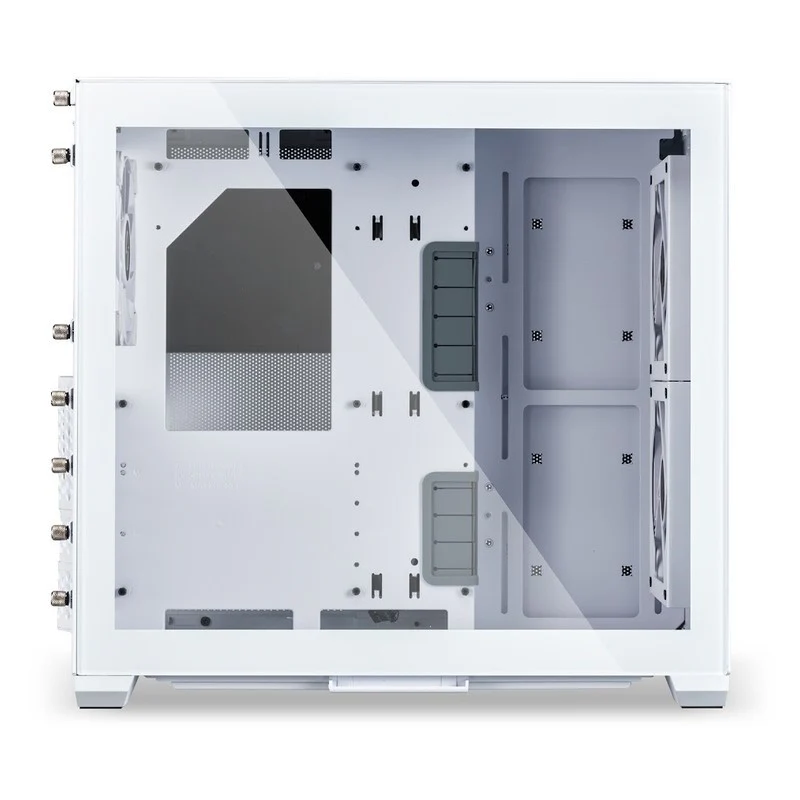

Modular Back Panels For Compatibility

7-slot or 5-slot back panels are included. 7-slot back panel for ATX, M-ATX, ITX motherboards, and 5-slot back panel for M-ATX, ITX motherboards.

Brand

Lian

Type

PC Case

Color

White

Dimensions

(D) 400 X (W) 288 X (H) 384 mm

Materials

4mm Aluminum Panel 0.8mm Mesh Panel 4.0 mm Tempered Glass

Motherboard Support

E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX

Fan Support

(Top) 120mm X3 / 140mm X2 (Side) 120mm X2 (Bottom) 120mm X2/ 140mm X2 (Front) 120mm X2/ 140mm X2 (Rear)120 mm X1

Radiator Support

(Top) 240mm or 280mm (Side) 240mm (Bottom) 240mm or 280mm (Front) 240mm or 280mm

PSU Support

ATX (Max. 200 mm)

Drive Support

6 X 2.5” SSD or 2 X 2.5” SSD + 4 X 3.5” HDD

GPU Length Clearance

362 mm

CPU Height Clearance

170 mm

Expansion Slots

7 or 5 (depends on the back panel)

I/O Ports

2 X USB 3.0 1 X USB 3.1 Type-c 1 X HD Audio

Dust Filter

1 × removable bottom dust tray
