Mercusys AX1500 Whole Home Mesh Wi-Fi 6 System

Blazing-Fast 3.6 Gbps Dual-Band Speeds

Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

Newest Wi-Fi 7

Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.

Seamless Roaming for a Smooth Network Experience

No more sudden signal drops or lagging Wi-Fi when you're walking around the house.

Multi-Link Operation (MLO)

Increases throughput, reduces latency, and improves reliability for emerging applications.

Full Gigabit Ports

3× Gigabit ports per Halo unit for lightning-fast wired connections.

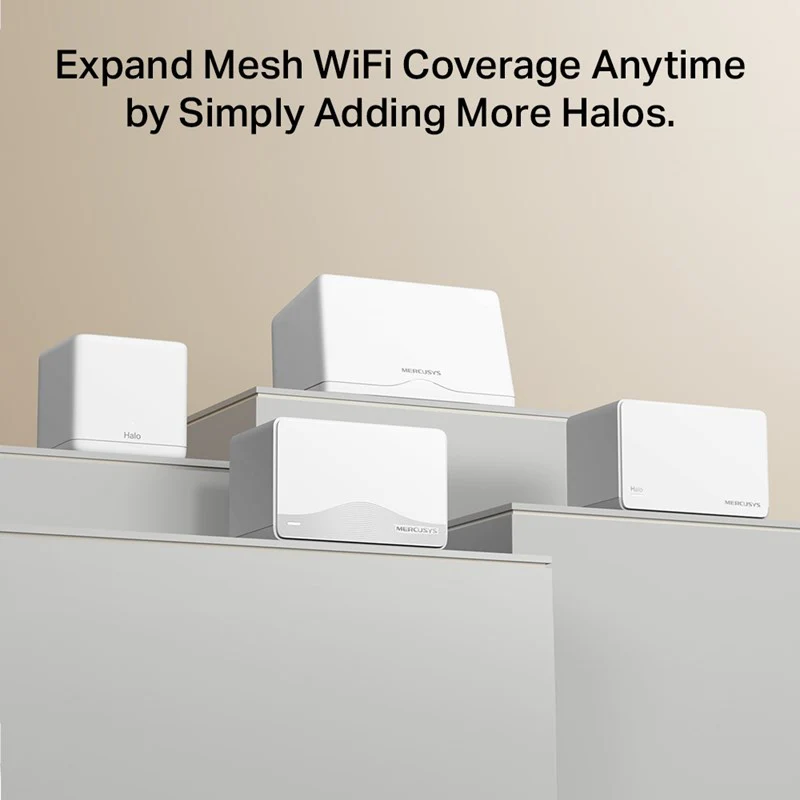

Whole Home Multi-Gigabit Coverage

Halo mesh units work as a unified network to fill your home up to 7,000 ft² / 650 M² (3-pack, ideal for 4-6 bedroom houses) ; 5,000 ft² / 460 M² (2-pack, ideal for 3-5 bedroom houses).

Easy Setup and Use

Network management has never been easier with the MERCUSYS app.

Please note that the Halo H series and S series cannot work together.

What are the benefits of Mercusys AX1500 Whole Home Mesh System ?

• Fast dual-band Wi-Fi speeds up to 3.6 Gbps for smooth streaming, gaming, and downloads.

• Latest Wi-Fi 7 technology delivers higher performance, lower latency, and improved efficiency.

• Seamless roaming keeps you connected as you move throughout your home.

• Multi-Link Operation (MLO) improves speed, reliability, and responsiveness.

• Gigabit Ethernet ports provide ultra-fast wired connections.

• Whole-home mesh coverage eliminates dead zones and delivers strong Wi-Fi across large homes.

Wi-Fi Class

BE3600

Wi-Fi (2.4 GHz)

688Mbps

Wi-Fi (5 GHz)

2880Mbps

Wi-Fi (6 GHz)

/

Wireless Standards

802.11be/ax/ac/a/b/g/n

Max Channel Width

160MHz

Reception Sensitivity

5GHz:

11BE EHT20 MCS0:-98dBm

11BE EHT20 MCS13:-63dBm

11BE EHT40 MCS13:-59dBm

11BE EHT80 MCS13:-56dBm

11BE EHT160 MCS13:-56dBm

2.4GHz:

11BE EHT20 MCS0:-97dBm

11BE EHT20 MCS11:-68dBm

11BE EHT40 MCS 0:-95dBm

11BE EHT40 MCS11:-64dBm

Max Wi-Fi Modulation

4096 QAM

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Wireless Functions

MLO

Multi-RUs

Beamforming

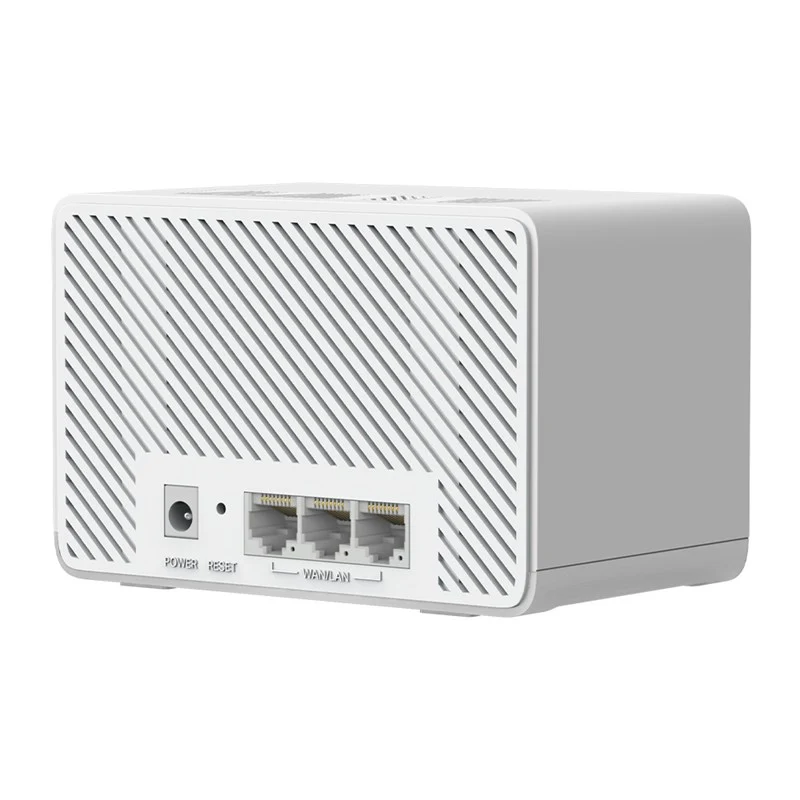

Interfaces

3× 1 Gbps Ports (WAN/LAN auto-sensing)

Antenna

Internal Antennas

Button

1× RESET Button

External Power Supply

Power Adapter Output: 12V/1.5A

Installation

/

LED

1× SYS

Max Power Consumption

13.32W

Operation Mode

Router/AP

WAN Mode

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

NAT Forwarding

Port Forwarding

UPnP

Protocols

IPv4/IPv6

IPTV

IGMP Proxy

IGMP Snooping

bridge

Tag VLAN

Guest Network

2.4G Guest Network

5G Guest Network

Parental Controls

Profile Settings

Time Control

Pause the Internet

Website Filtering

DHCP

Address Reservation

Server

DDNS

MERCUSYS

Easymesh

/

QoS

Time Settings

Priority Control

Security

SPI Firewall

Access Control

ISP Feature

CWMP

ISP Preset (Agile Config)

System

Firmware Upgrade

Backup and Restore

Administration

System Log

Time Settings

Reboot

Diagnostics

/

LED Management

LED Control

Night Mode

Device Management

MERCUSYS APP

Cloud

MERCUSYS ID

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
