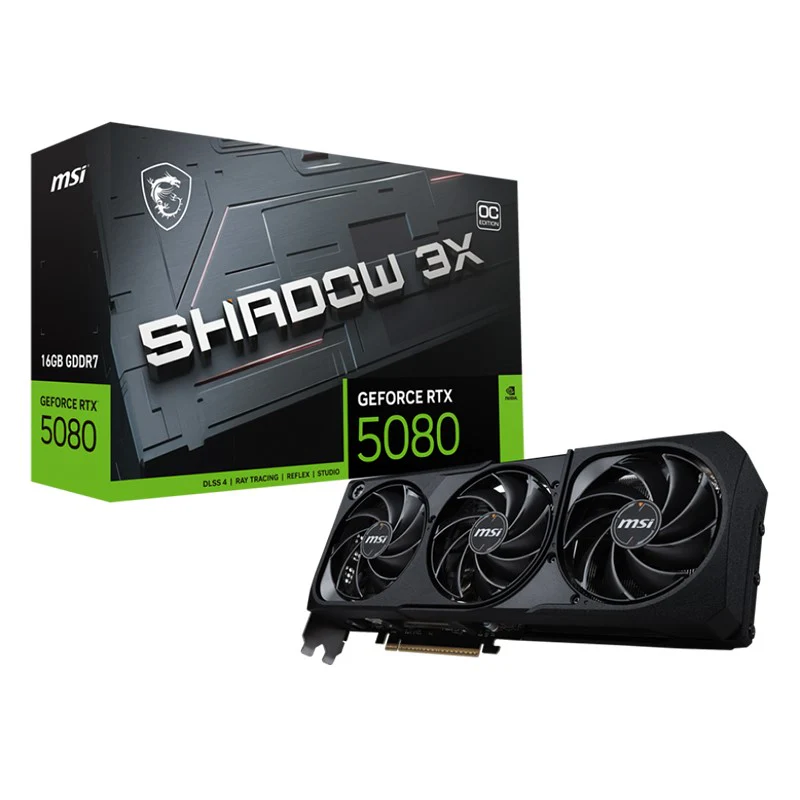

MSI GeForce RTX 5080 16GB SHADOW 3X OC GDDR7 Gaming Graphic Card

Powered by the NVIDIA Blackwell architecture and DLSS 4

SFF-Ready Enthusiast GeForce Card

Core Clocks

Extreme Performance: 2655 MHz (MSI Center)

Boost: 2640 MHz

TORX Fan 5.0

Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.

Nickel-plated Copper Baseplate

Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.

Core Pipes

Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

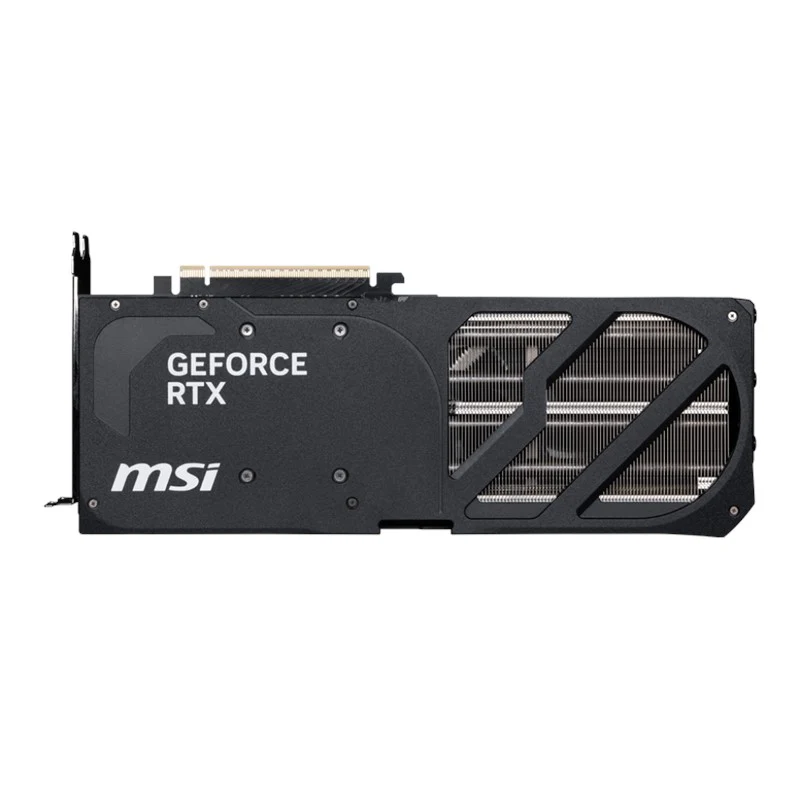

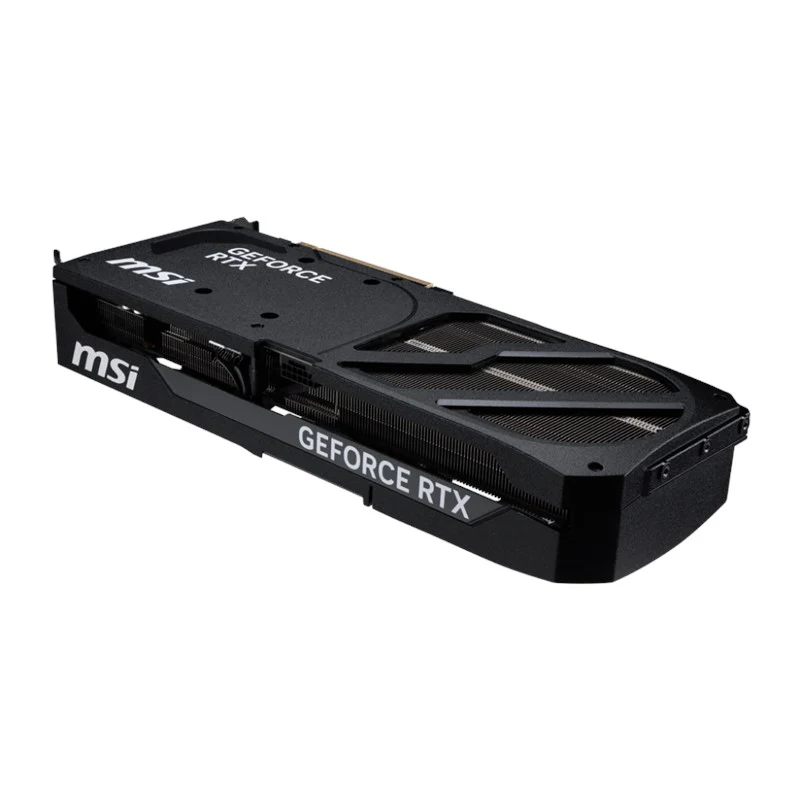

Reinforcing Backplate

The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner

Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Marketing Name

GeForce RTX 5080 16G SHADOW 3X OC

Model Name

G5080-16S3C

Graphics Processing Unit

NVIDIA GeForce RTX 5080

Interface

PCI Express Gen 5

Core Clocks

Extreme Performance: 2655 MHz (MSI Center)

Boost: 2640 MHz

CUDA CORES

10752 Units

Memory Speed

30 Gbps

Memory

16 GB GDDR7

Memory Bus

256-bit

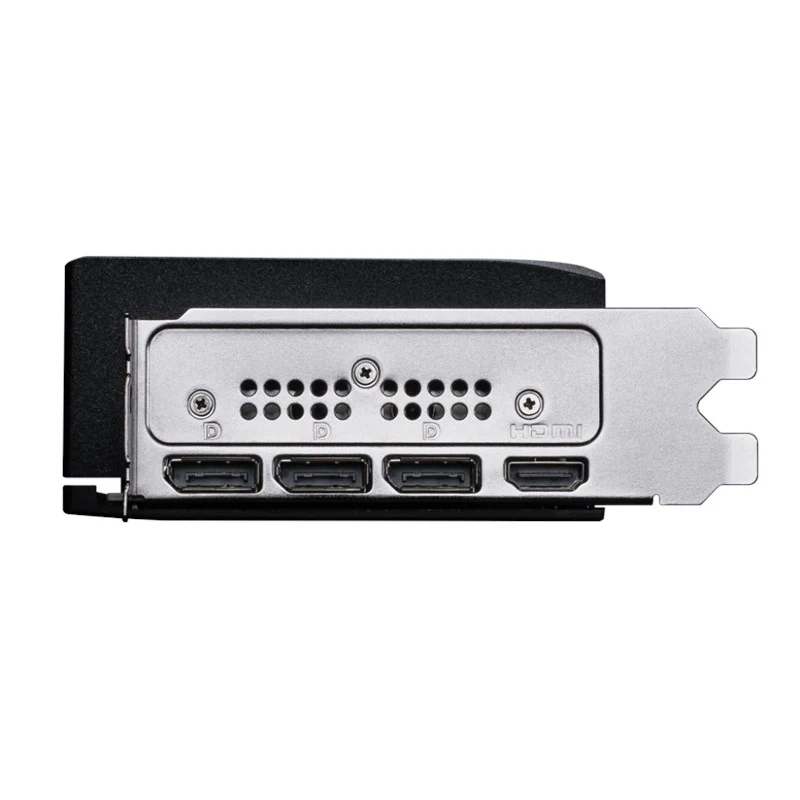

Output

DisplayPort x 3 (v2.1b)

HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

360 W

Power connectors

16-pin x 1 (ATX 3.1 PSU recommended)

Recommended PSU

850 W

Card Dimension (mm)

303 x 121 x 49 mm

Weight (Card / Package)

1046 g / 1546 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC technology

Y

Digital Maximum Resolution

7680 x 4320
