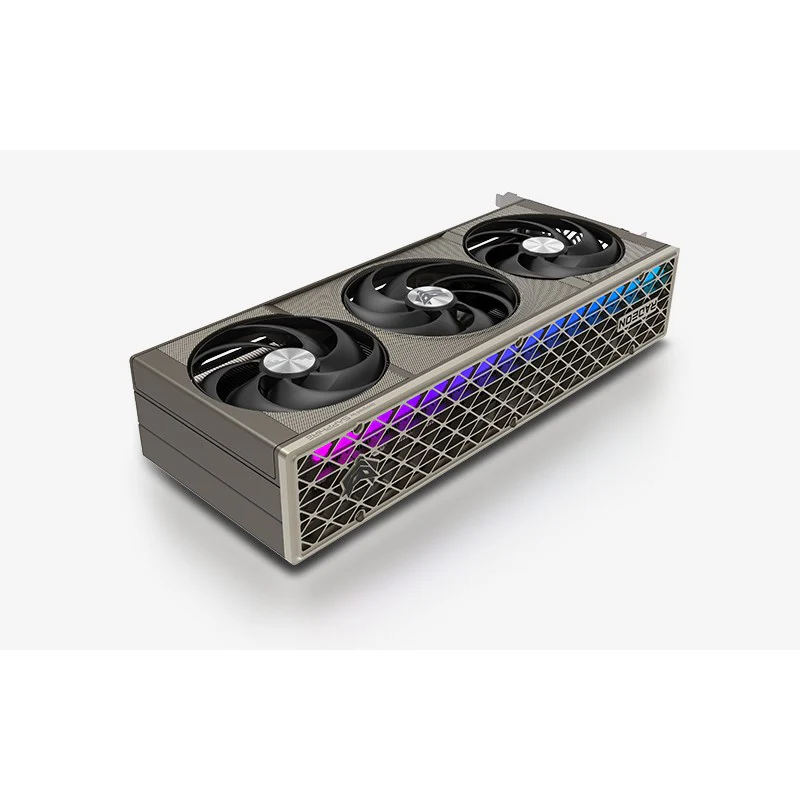

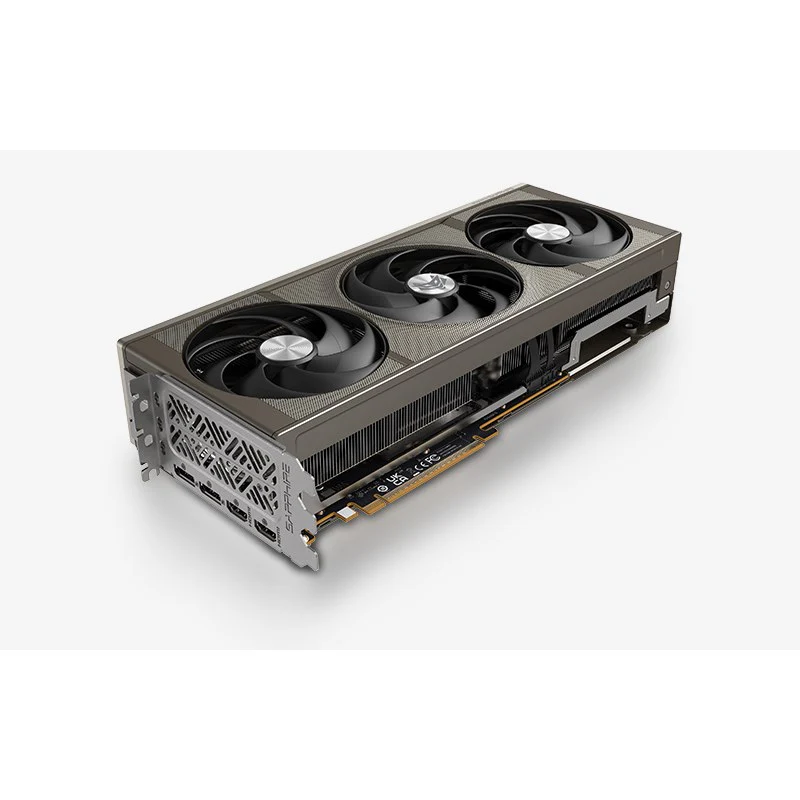

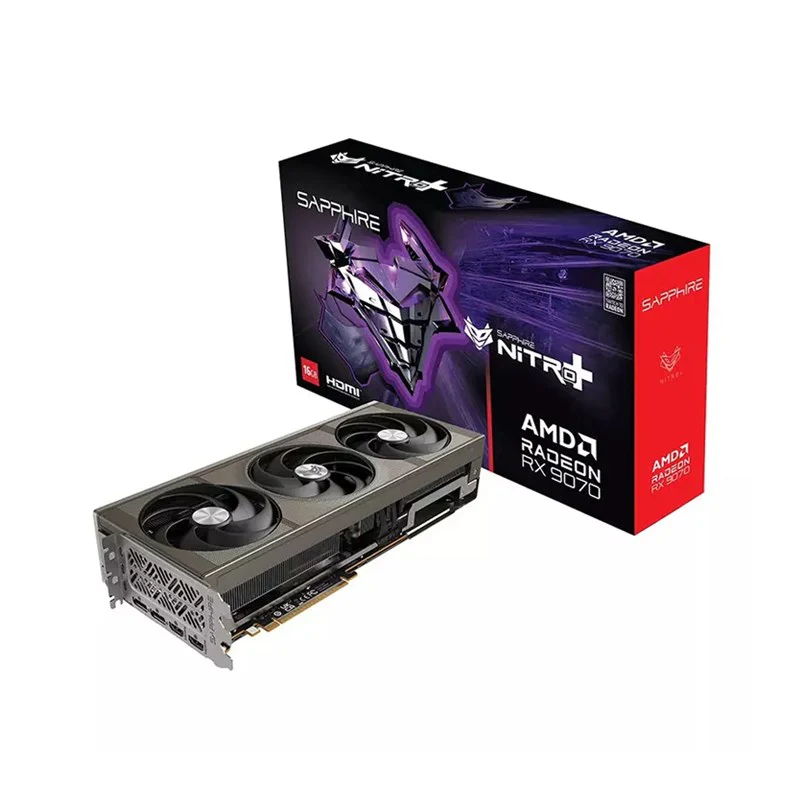

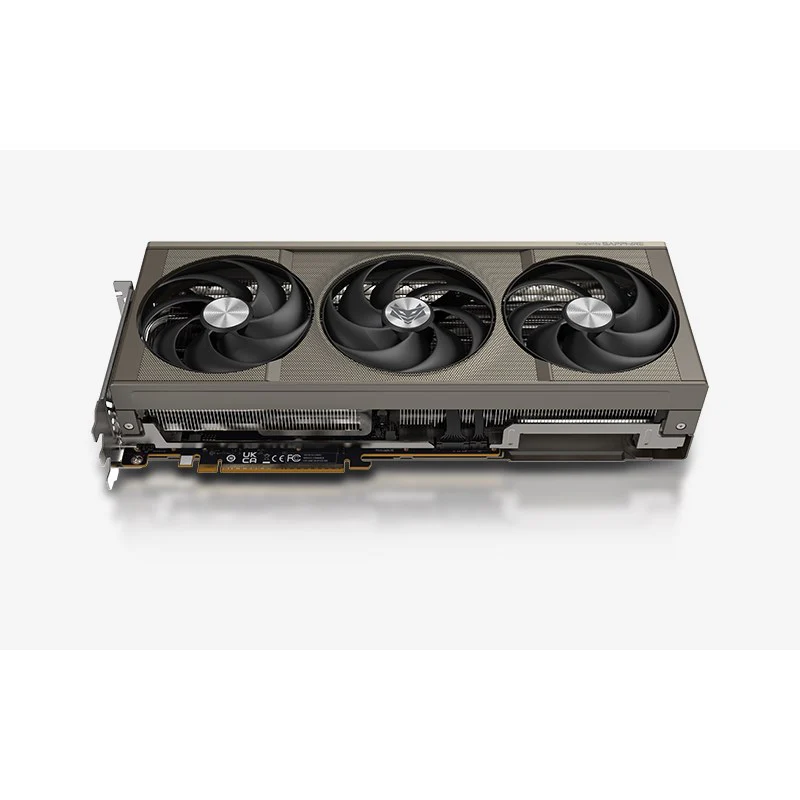

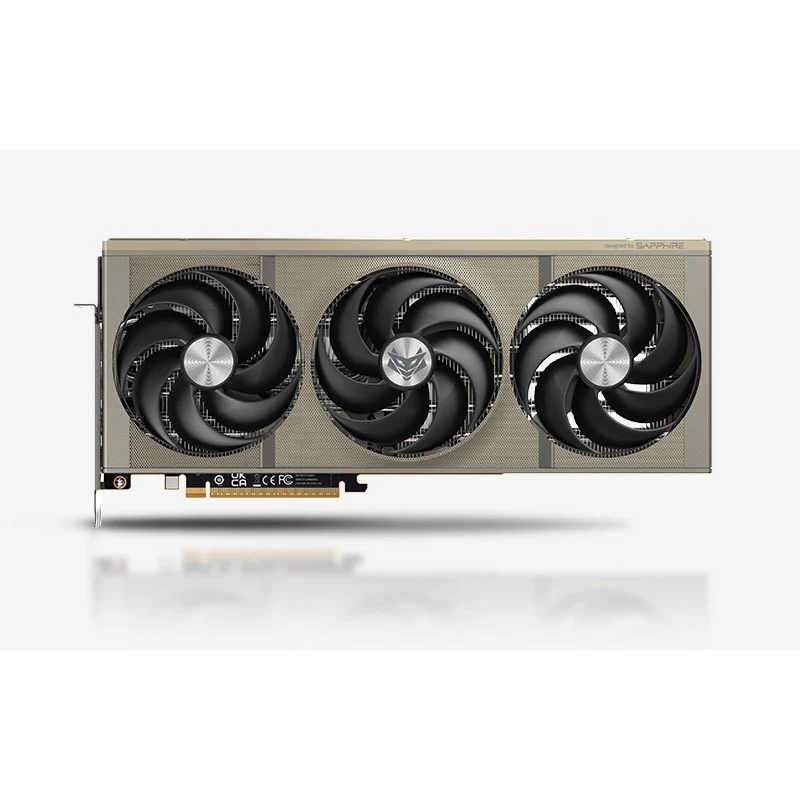

Sapphire NITRO+ AMD Radeon RX 9070 16GB GDDR6 Gaming Graphics Card

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

Quick Connect MagniPlate

The magnetic backplate on the graphics card combines sleek design with practical functionality. Engineered for effortless installation, its magnetic attachment ensures a secure fit while enhancing heat dissipation and overall durability. This premium feature not only protects your graphics card but also elevates your build with a clean, modern aesthetic—perfect for gamers and creators who demand performance and style.

AeroCurve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

What are the benefits of Sapphire NITRO+ Gaming Graphics Card ?

• Superior thermal material improves cooling efficiency and long-term reliability.

• Advanced fan design delivers stronger airflow while keeping noise levels low.

• Enhanced cooling helps maintain stable performance during gaming and heavy workloads.

• Magnetic backplate allows easy installation and improves durability.

• Backplate also aids heat dissipation for better overall thermal management.

• Stylish, premium design enhances the look of your PC build.

Graphic Engine

AMD Radeon RX 9070 Graphics Card
AMD RDNA 4 Architecture

Video Memory

16 GB GDDR6

Fans

Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing

Interface

2x HDMI
2x DisplayPort 2.1a

Engine Clock

Boost Clock: Up to 2700 MHz
Game Clock: Up to 2210 MHz

Cores

3584

Memory Bus / Speed

20 Gbps Effective

Memory Interface

256 bit

Bus Standard

PCI-Express 5.0 x16

Resolution

HDMI: 7680×4320
DisplayPort 2.1: 7680×4320

System Requirement

Minimum 650 Watt Power Supply
12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16 GB recommended.

Special Features

Quick Connect MagniPlate
STEALTH Hidden Power Cable
12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Cold Rolled Steel Frame
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
ARGB Light Bar
Fan Quick Connect
Two-Ball Bearing Fans
Premium 14-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
Performance vs. Efficiency Quicksets
Glow!
Fan Check
TriXX Boost
External RGB LED MB Synchronization

Power Consumption

245W Typical Board Power

Dimensions

3.2 slot, ATX
Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm
