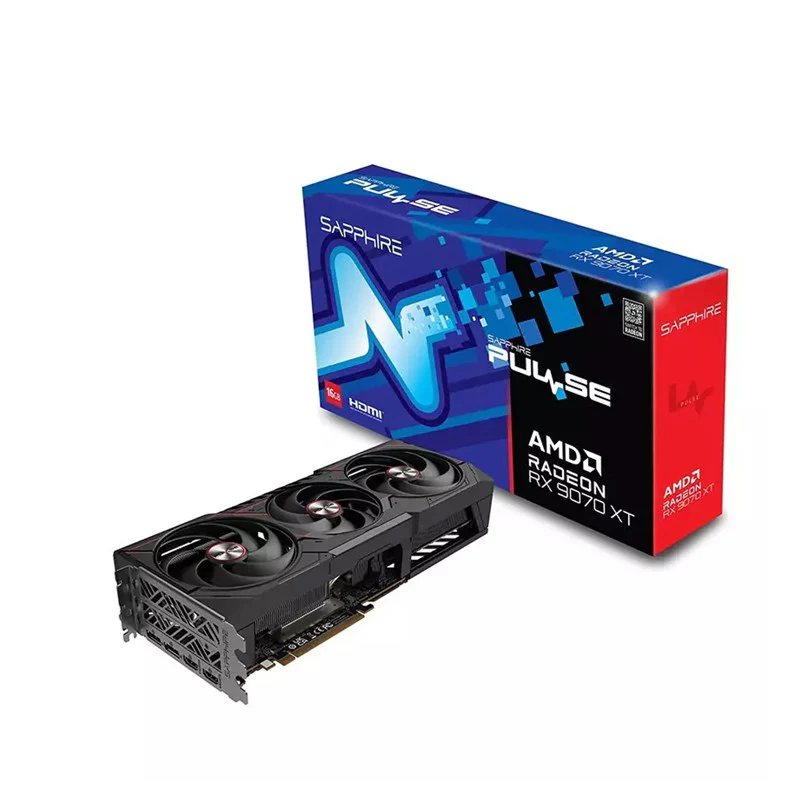

Sapphire PULSE AMD Radeon RX 9070 XT 16GB GDDR6 Gaming Graphics Card

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

AeroCurve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

What are the benefits of Sapphire PULSE Gaming Graphics Card ?

• Superior thermal material improves heat transfer for better cooling and durability.

• Free Flow cooling design enhances airflow for efficient heat dissipation.

• AeroCurve fan blades provide stronger cooling performance with reduced noise.

• Maintains stable performance during intensive gaming and workloads.

• Helps prevent overheating for greater reliability and longevity.

• Efficient cooling supports consistent performance under heavy use.

GPU

AMD Radeon RX 9070 XT Graphics Card

AMD RDNA 4 Architecture

Engine Clock

Boost Clock: Up to 2970 MHz

Game Clock: Up to 2400 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64 MB

Ray Accelerators

64

AI Accelerator

128

Output

2x HDMI

2x DisplayPort 2.1a

Form Factor

3 slot, ATX

Dimension: 320(L)X 120.25(W)X 61.6 (H)mm

Power Consumption

304W Typical Board Power

OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 750 Watt Power Supply

2 x 8-pin Power Connector.

PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8 GB of system memory. 16 GB recommended.
