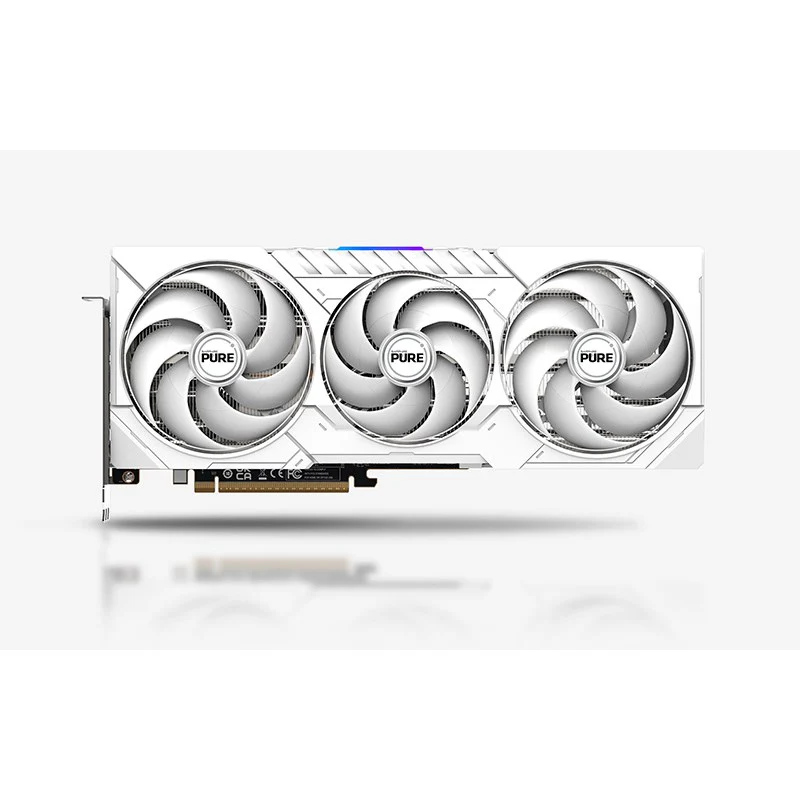

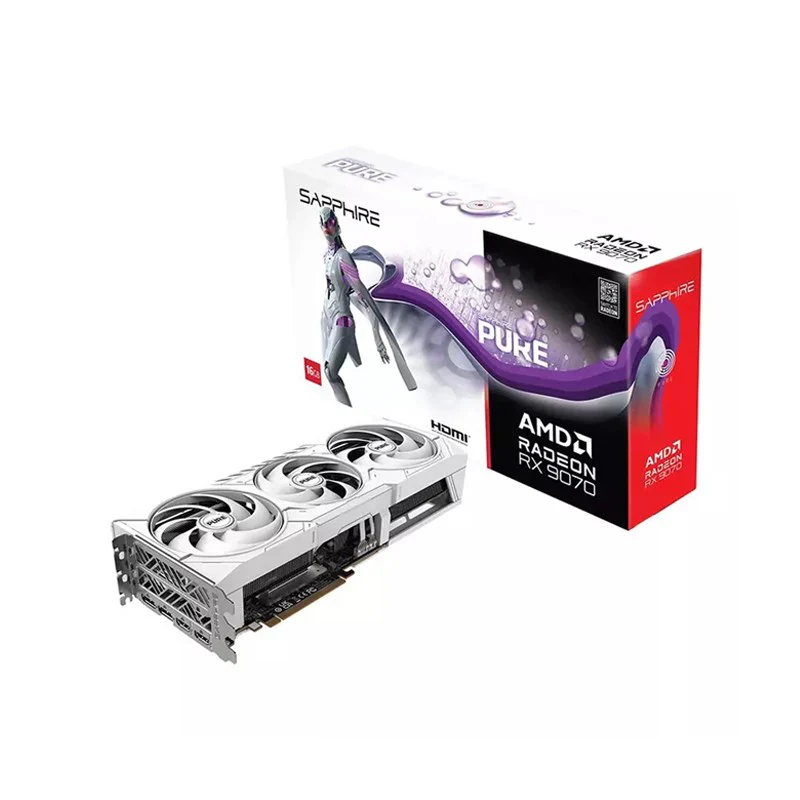

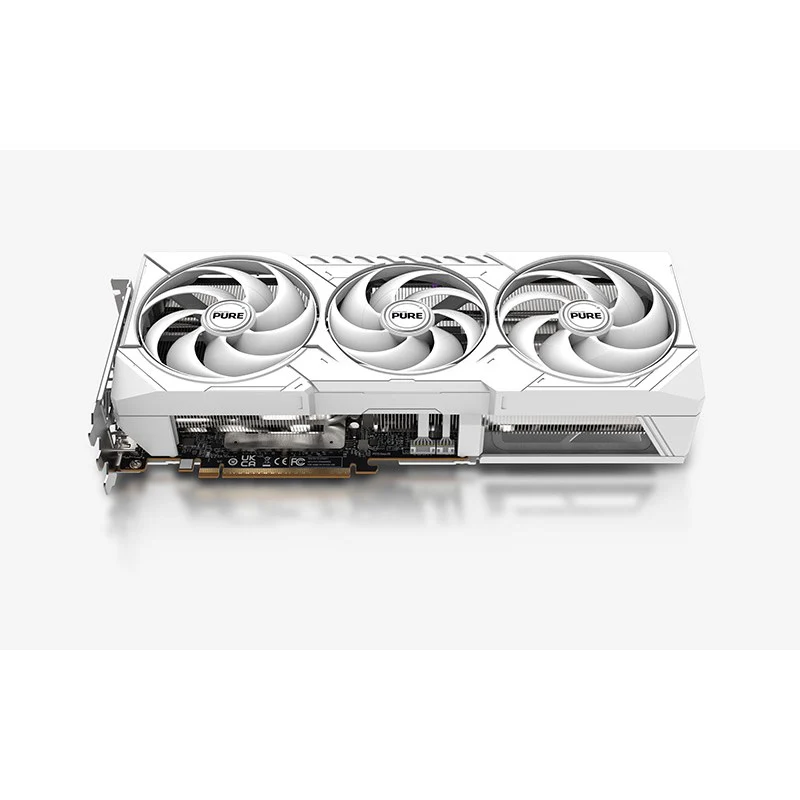

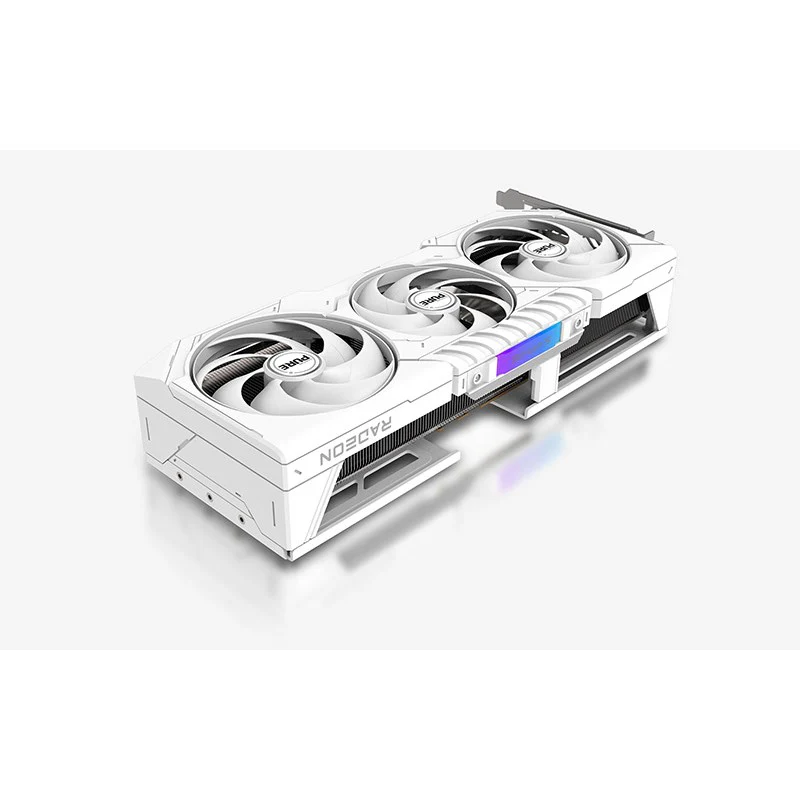

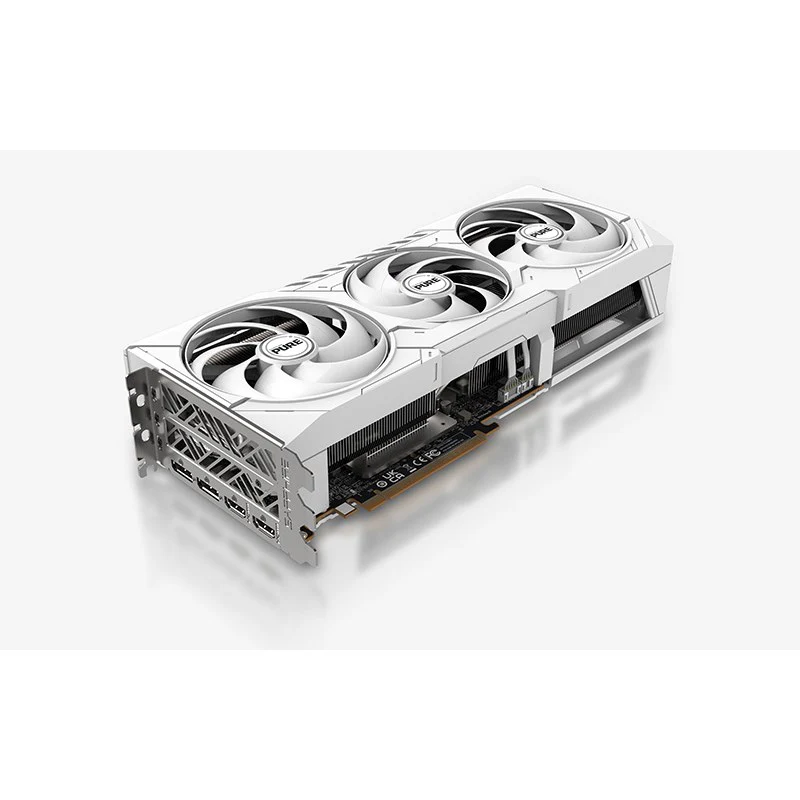

Sapphire PURE AMD Radeon RX 9070 16GB GDDR6 Gaming Graphics Card

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

Tough Metal Backplate

The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

What are the benefits of Sapphire PURE Gaming Graphics Card ?

• Superior thermal material enhances cooling efficiency and improves graphics card longevity.

• Advanced Free Flow cooling design maximizes airflow for better heat dissipation.

• Maintains stable performance during gaming and demanding workloads.

• Durable aluminum backplate adds strength and protects against bending.

• Backplate also improves cooling and helps keep dust away from components.

• Reliable thermal management supports consistent long-term performance.

Part No

S88-4E490-100SA

Graphic Engine

AMD Radeon RX 9070 Graphics Card
AMD RDNA 4 Architecture

Video Memory

16 GB GDDR6

Fans

Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing

Interface

2x HDMI
2x DisplayPort 2.1a

Engine Clock

Boost Clock: Up to 2700 MHz
Game Clock: Up to 2210 MHz

Cores

3584

Memory Bus / Speed

20 Gbps Effective

Memory Interface

256 bit

Bus Standard

PCI-Express 5.0 x16

Resolution

HDMI: 7680×4320
DisplayPort 2.1: 7680×4320

System Requirement

Minimum 650 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8 GB of system memory. 16 GB recommended.

Special Features

Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
ARGB SAPPHIRE Logo
Two-Ball Bearing Fans
12-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
Performance vs. Efficiency Quicksets
Glow!
TriXX Boost
External RGB LED MB Synchronization

Power Consumption

245W Typical Board Power

Dimensions

3 slot, ATX
Dimension: 320(L)X 120.25(W)X 61.6 (H)mm
