Thermaltake View 170 WS ARGB Micro ATX Gaming Case

View 170 WS ARGB Snow Micro Chassis

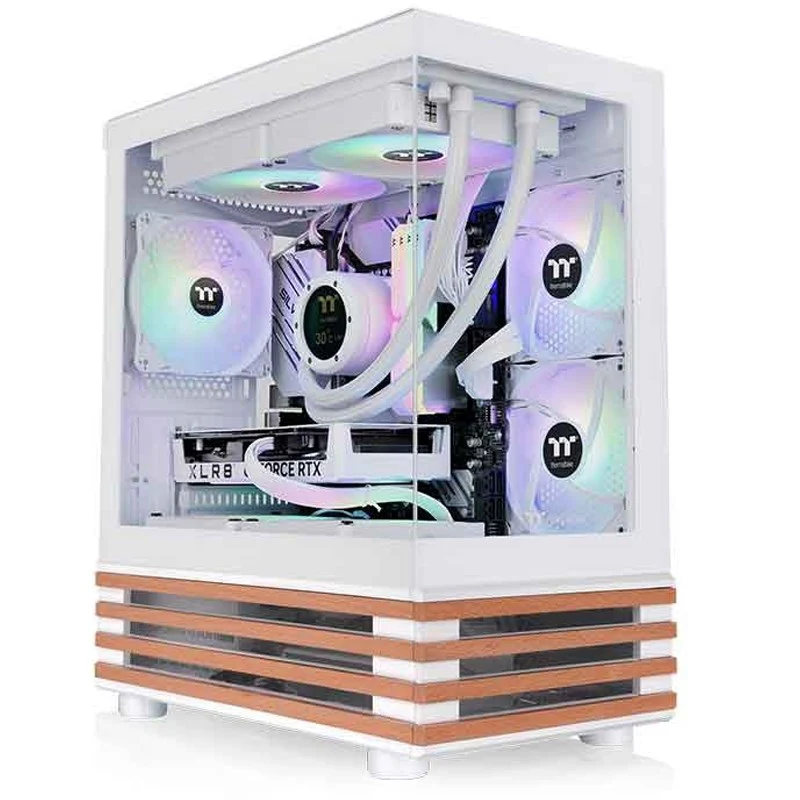

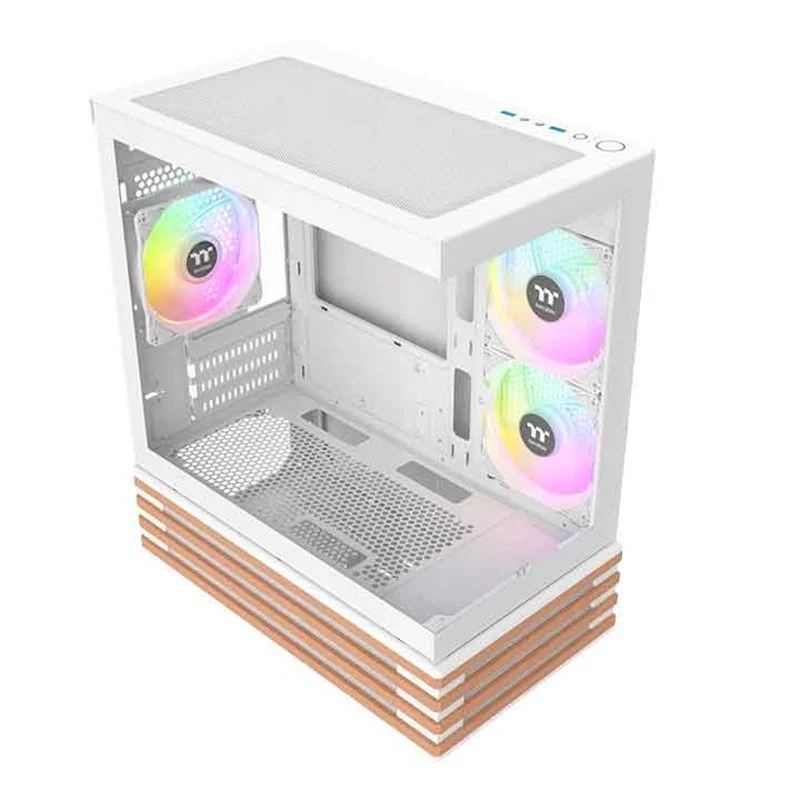

Built for amazing views, the View 170 WS ARGB Snow Micro Chassis is an M-ATX case accented with stylish wood elements, featuring tempered glass front and left panels, and comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Additionally, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 WS ARGB Snow Micro Chassis.

Tempered Glass Front and Left Panels

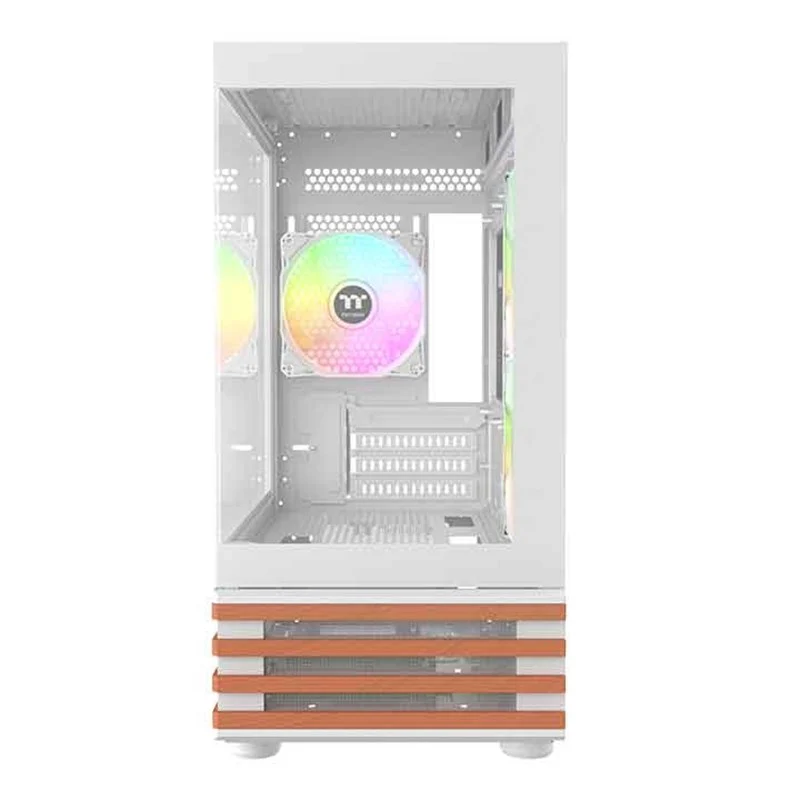

The View 170 WS ARGB Snow Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.

Up to a 280mm/240mm Radiator

Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 WS ARGB Snow Micro Chassis.

Pre-installed Fan System

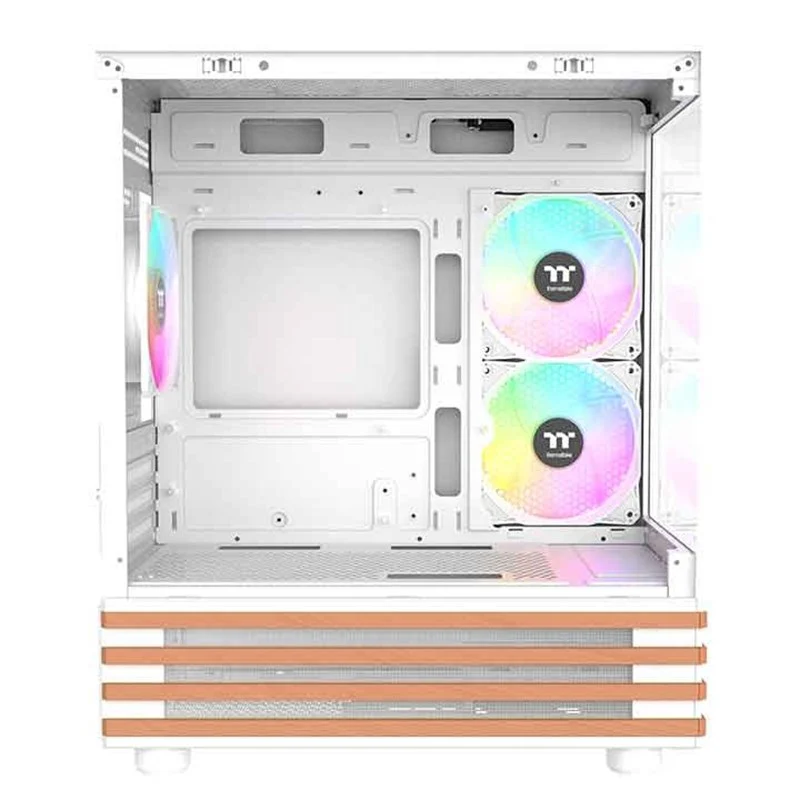

The View 170 WS ARGB Snow Micro Chassis comes with two 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Flexibility to Build Your Ideal PC

The View 170 WS ARGB Snow Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan at the rear, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!

Handy I/O Ports

Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.

What are the benefits of Thermaltake View 170 WS Gaming Case ?

• Tempered glass front and side panels showcase your PC components in style.

• Includes three pre-installed ARGB fans for enhanced airflow and vibrant lighting effects.

• Supports motherboard RGB software for easy lighting customization and synchronization.

• Flexible cooling options with support for up to seven fans and 280mm/240mm radiators.

• Spacious interior supports large GPUs, CPU coolers, and power supplies.

• Compact Micro-ATX design balances performance, expandability, and space efficiency.

• Convenient front I/O ports provide quick access to USB and audio connections.

View

View 170 WS ARGB

Micro Case

438 x 214 x 381.4 mm
(17.24 x 8.43 x 15.02")

3mm Tempered Glass x 2

SPCC

Right(intake):
120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 2

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

1 x 3.5”, 2 x 2.5”

4

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)

USB 3.0 x 2, HD Audio x 1

Standard PS2 PSU (optional)

Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right:
2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Power Cover:
2 x 120mm, 1 x 120mm

Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Rear:
1 x 120mm

CPU cooler max height: 160mm

VGA max length: 340mm

PSU max length: 180mm
