What This Product Does

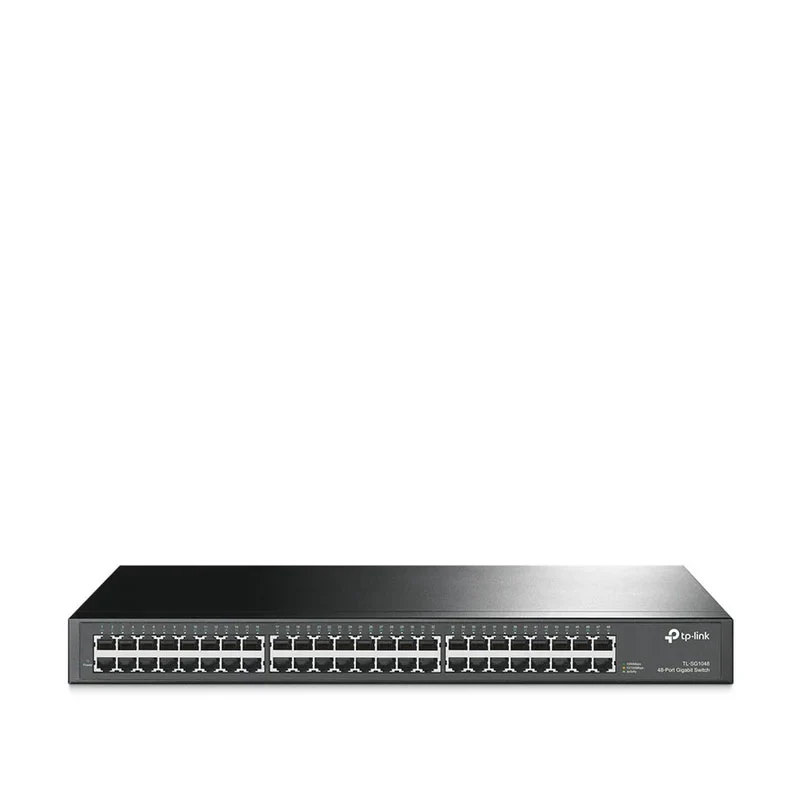

A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

Ease of Use

The auto features of this gigabit switch make installation plug and play hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

High Performance

The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Brand

TP-Link

Type

Networking Switch

Color

Black

Interface

48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

17.3 x 8.7 x 1.7 in.

Mounting

19" 1U Rack Mountable
(Mounting bracket included)

Max Power Consumption

32.3W

Switching Capacity

96Gbps

Packet Forwarding Rate

71.4Mpps

MAC Address Table

16K

Buffer Memory

12Mb

Jumbo Frame

12KB

Transfer Method

Store-and-Forward
