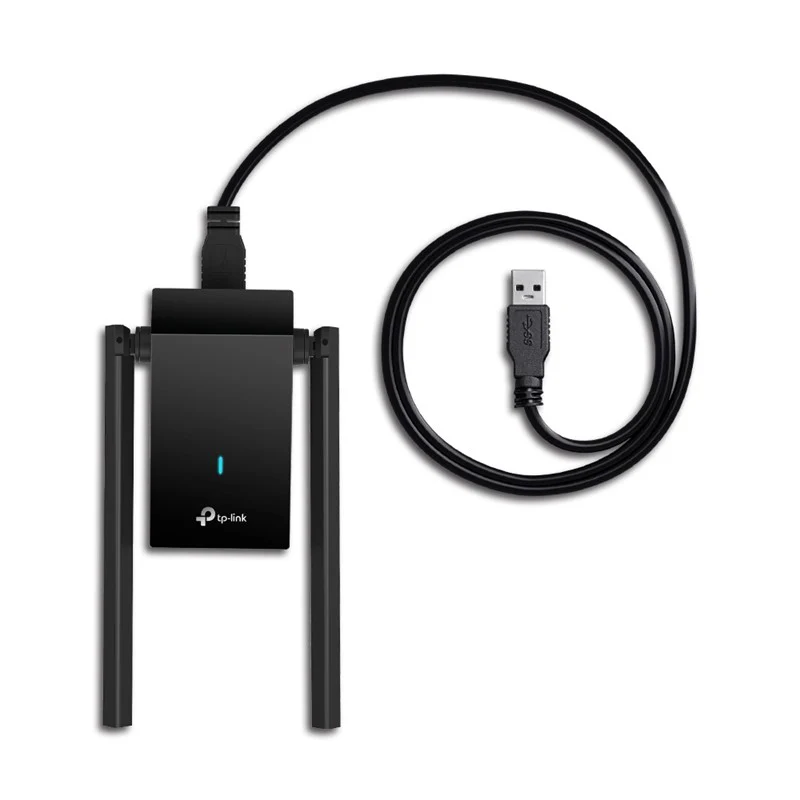

Your Upgrade to WiFi 6

Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

A Perfect Match for Faster Speeds

USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

Coverage Powered by Beamforming

High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Escape the Congestion with MU-MIMO

Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

Adjustable, Multi-Directional Antennas

Rotate and adjust the antennas 180° for the best reception from any location.

LED

Status

Dimensions

84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in)

Antenna

2× High-Gain Dual-Band Antennas

Wireless Features

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax

Signal Rate

5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm

Transmit Power

5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)

Wireless Modes

Infrastructure mode

Wireless Security

WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
