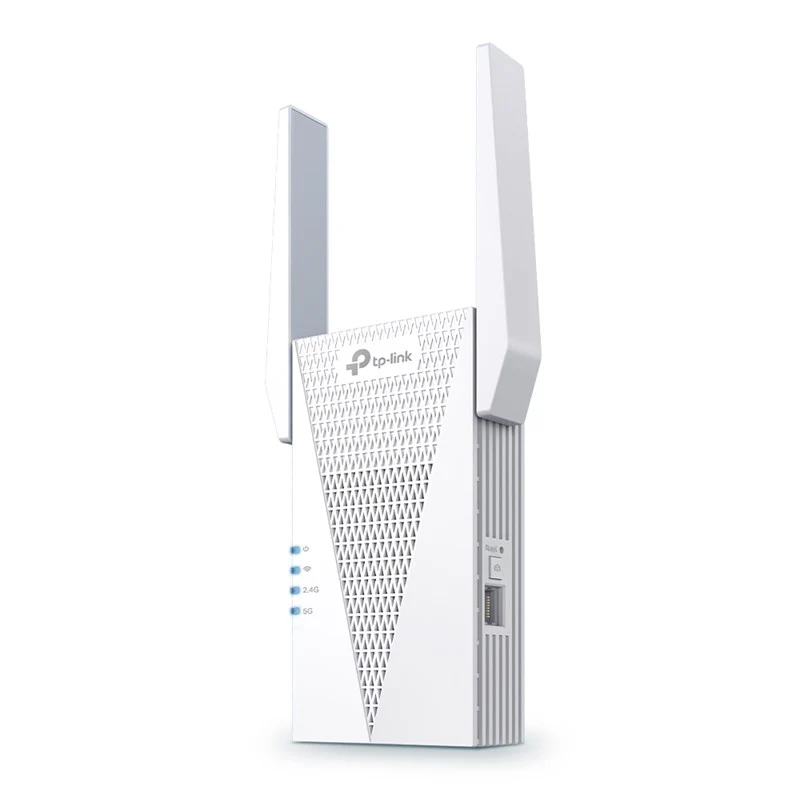

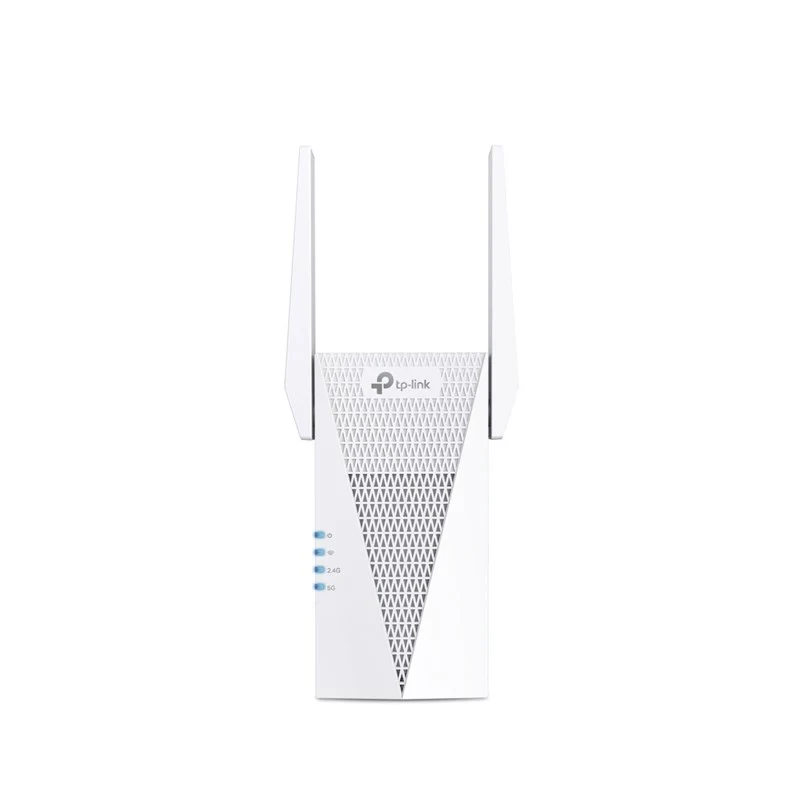

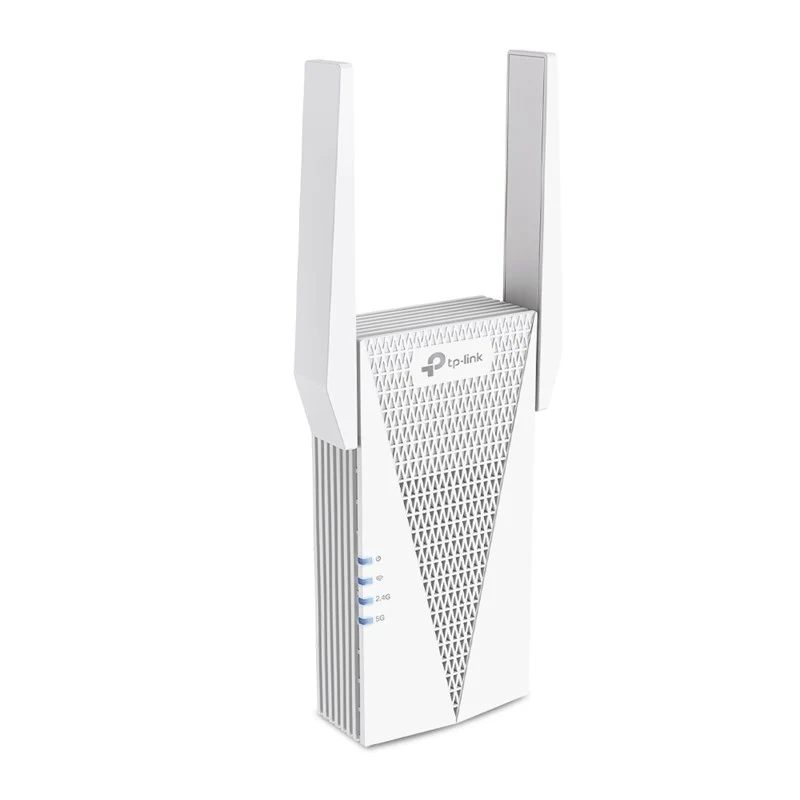

TP-Link AX3000 Mesh Wi-Fi 6 Extender

Up to 3.0 Gbps Dual Band Wi-Fi

Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) Wi-Fi bands for faster speeds and greater capacity with the Wi-Fi 6 technology.

Smart Roaming

Walk from room to room and stay connected with the fastest possible speeds.

EasyMesh-Compatible

Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.

AP Mode

Create a new Wi-Fi access point through the Gigabit Ethernet port to enhance your wired network with Wi-Fi capability.

Adaptive Path Selection

Automatically choosing the fastest connection path to the router.

Easy Setup

Plug in and then easily set up via a press of the WPS button or via the Tether App.

Ultimate Compatibility

Extends the range of any Wi-Fi router or wireless access point.

What are the benefits of TP-Link AX3000 Mesh Wi-Fi 6 Extender ?

• Extends Wi-Fi coverage to eliminate weak-signal areas and dead zones.

• Dual-band Wi-Fi 6 speeds up to 3.0 Gbps for faster and more reliable connectivity.

• Smart Roaming keeps devices connected to the strongest signal as you move around.

• EasyMesh support enables seamless whole-home Wi-Fi coverage.

• Adaptive Path Selection automatically chooses the fastest connection for better performance.

• Easy setup via WPS button or Tether app.

• Compatible with virtually any Wi-Fi router or access point.

Interface

1 Gigabit Ethernet Port

Button

WPS Button

Reset Button

Input Power

100-240V~50/60Hz

Max. Power Consumption

15.2W

Antenna

2 External Antennas

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz

IEEE 802.11b/g/n/ax 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

574 Mbps at 2.4GHz

2402 Mbps at 5GHz

Working Modes

Range Extender / Access Point

Reception Sensitivity

5GHz:

11a 6Mbps:-97dBm

11a 54Mbps:-78dBm

11ax HE20 MCS0: -97dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -94dBm

11ax HE40 MCS11: -62dBm

11ax HE80 MCS0: -92dBm

11ax HE80 MCS11: -61.5dBm

11ax HE160 MCS11: -59dBm

2.4GHz:

11g 6Mbps:-96dBm

11g 54Mbps:-78dBm

11ax HE20 MCS0: -95dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -93.5dBm

11ax HE40 MCS11: -62dBm

Wireless Functions

Enable/Disable Wireless Radio

DFS (the latest firmware and hardware version is required)

Access Control

LED Control

Power Schedule

Wi-Fi Coverage Adjustment

Wireless Security

WEP

WPA

WPA2

WPA3

Transmission Power

2.4 GHz ≤ 16 dBm

5 GHz ≤ 21 dBm

Mesh Technology

EasyMesh-Compatible

Certification

RoHS

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
