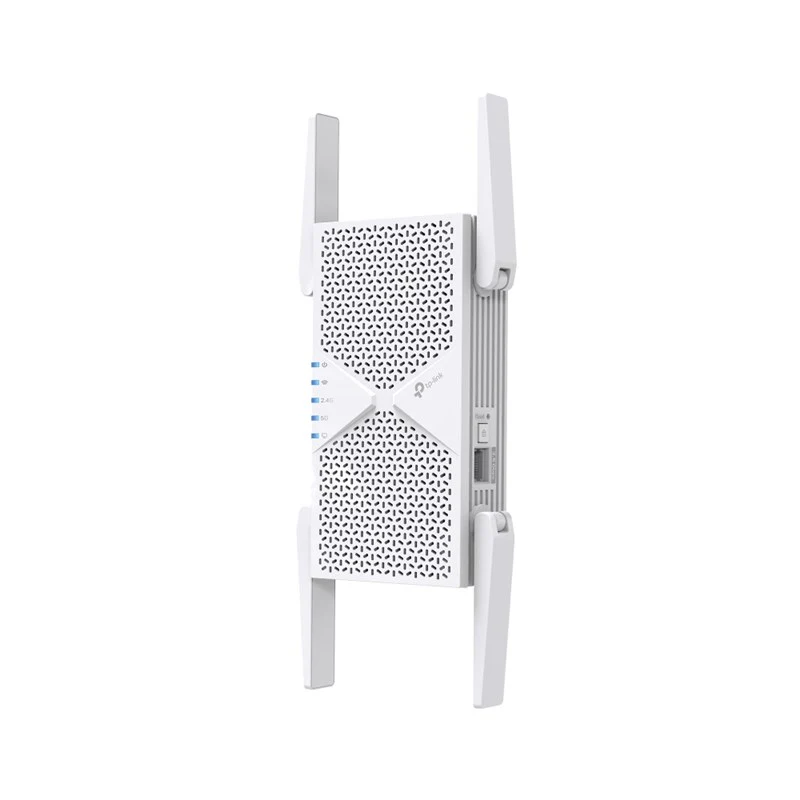

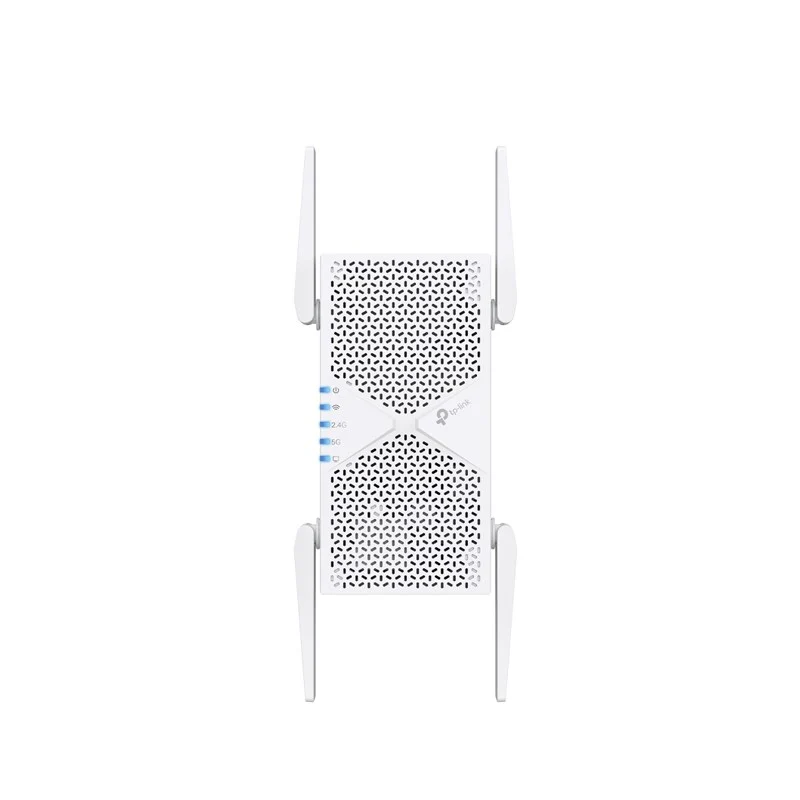

TP-Link BE6500 Dual-Band Wi-Fi 7 Range Extender

Lightning-Fast 6.5 Gbps Dual-Band Wi-Fi 7

5764 Mbps (5 GHz) + 688 Mbps (2.4 GHz).

Multi-Link Operation (MLO)

Increases throughput, reduces latency, and improves reliability for emerging applications.

2.5G Multi-Gigabit Ethernet Port

1× 2.5 Gbps port ensures max flexibility and boosted throughput.

Smart Roaming

Walk from room to room and stay connected with the fastest possible speeds.

EasyMesh-Compatible

Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.

Easy Setup

Plug in and then easily set up via a press of the WPS button or via the Tether App.

Great Compatibility

Works with all Wi-Fi generations and devices and all internet providers.

What are the benefits of TP-Link BE6500 Range Extender ?

• Ultra-fast Wi-Fi 7 speeds up to 6.5 Gbps for seamless streaming, gaming, and downloads.

• Multi-Link Operation (MLO) delivers lower latency, higher reliability, and improved performance.

• 2.5G Ethernet port enables ultra-fast wired connections.

• Smart Roaming keeps you connected to the strongest signal throughout your home.

• EasyMesh support creates seamless whole-home Wi-Fi coverage with fewer dead zones.

• Simple setup via WPS or the Tether app.

• Compatible with all Wi-Fi generations, devices, and internet providers.

Interface

1× 2.5 Gbps Ethernet Port

Button

WPS Button

Reset Button

Input Power

100-240V~50/60Hz 0.3A

Max. Power Consumption

15W

Antenna

4 External Antennas

Wireless Standards

Wi-Fi 7

IEEE 802.11be/ax/ac/n/a 5 GHz

IEEE 802.11be/ax/n/b/g 2.4 GHz

Frequency

5 GHz

2.4 GHz

Signal Rate

5764 Mbps at 5 GHz

688 Mbps at 2.4 GHz

Working Modes

Range Extender/Access Point

Reception Sensitivity

5GHz:

11be EHT20 MCS0:-96dBm

11be EHT40 MCS0:-94dBm

11be EHT80 MCS0:-91dBm

11be EHT160 MCS0:-88dBm

11be EHT20 MCS13:-59dBm

11be EHT40 MCS13:-57dBm

11be EHT80 MCS13:-54dBm

11be EHT160 MCS13:-51dBm

2.4GHz:

11be EHT20 MCS0:-95dBm

11be EHT40 MCS0:-93dBm

11be EHT20 MCS13:-58dBm

11be EHT40 MCS13:-56dBm

Wireless Functions

LED Control

Access Control

Power Schedule

Wi-Fi Coverage

Wireless Security

WPA/WPA2-PSK encryptions

WPA2/WPA3

Advanced Features

Multi-Link Operation (MLO)

160 MHz Channel

4K-QAM

Multi-RUs

Transmission Power

FCC:

2.4GHz < 30dBm

5GHz < 30dBm

Mesh Technology

EasyMesh-Compatible

Certification

FCC, RoHS

System Requirements

Internet Explorer, Firefox, Chrome, Safari, or other

JavaScript-enabled browser

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
