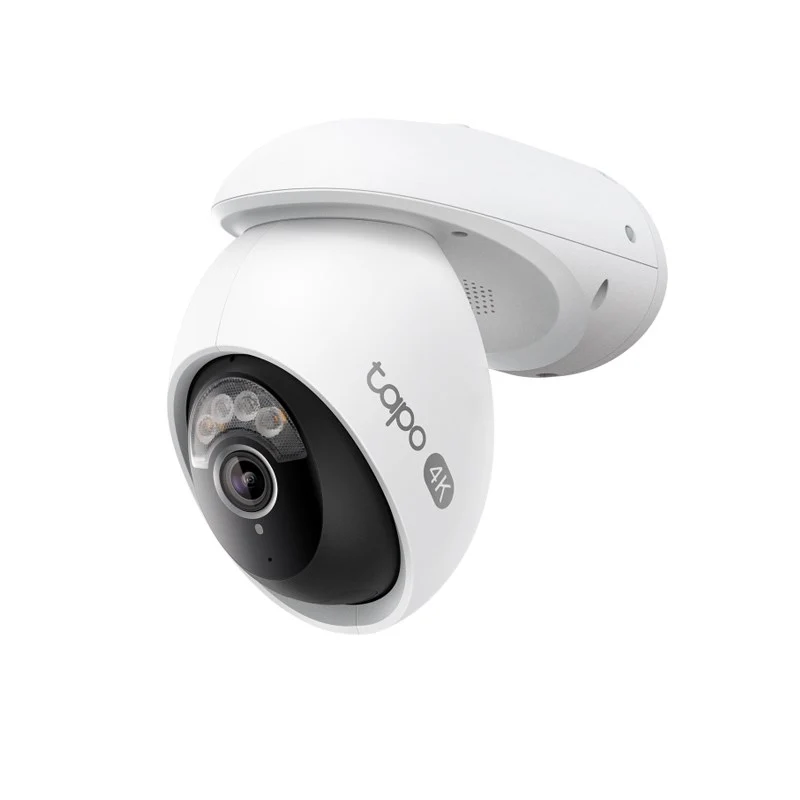

TP-Link Outdoor Pan/Tilt Security 18X Digital Zoom Wi-Fi Camera 4K

4K Ultimate Clarity

The camera features 4K 8 MP resolution for superior clarity with upgraded image sensor, processor and lens.

Local Facial Recognition

The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification.

Wi-Fi 6 Dual-Band Connection

Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability.

Starlight Color Night Vision

Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.

Free Person/Pet/Vehicle Detection

Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.

Flexible Storage Options

Choose from local microSD storage up to 512 GB or the secure Tapo Care cloud service for additional peace of mind.

IP66 Weatherproof

Offers excellent waterproof and dustproof performance for outdoor scenarios.

What are the benefits of TP-Link Tapo C560WS Camera ?

• 4K 8 MP resolution delivers ultra-clear and detailed video footage.

• AI facial recognition identifies family, friends, and strangers for smarter security.

• Wi-Fi 6 dual-band connectivity provides faster and more stable connections.

• Starlight color night vision captures vivid footage even in low-light conditions.

• Smart detection recognizes people, pets, and vehicles while reducing false alerts.

• Flexible storage options support up to 512 GB microSD cards and cloud backup.

• IP66 weatherproof design ensures reliable outdoor performance in rain and dust.

• Enhanced image sensor and processor improve overall image quality and accuracy.

Image Sensor

1/27" Progressive Scan CMOS Starlight Sensor

Lens

Focal Length: 4mm ± 5%
Aperture: F1.6 ± 5%
Field of View: 105° (Diagonal), 88°(Horizontal), 45°(Vertical)

Night Vision

850 nm IR LED
Starlight Color Night Vision

Lighting

2× Built-in Spotlights

Interface & Button

1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512 GB)

Pan/Tilt Range

Pan Mechanical Range: 326° (360° Pan Coverage)
Tilt Mechanical Range: 53° (98° Tilt Coverage)

Maximum Resolution

4K 8 MP (3840 × 2160 px)

Frame Rate

25 fps

Digital Zoom

18x

Video Compression

H.264

Live View

Yes

Image Enhancement

3DNR
WDR

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

99 dB (Level measured at 4"/10 cm distance)

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

AI Detection

Motion Detection
Person Detection
Pet Detection
Vehicle Detection

Activity Zones

Yes

Output Notification

System Notification
System Notification with Snapshot (Tapo Care Services)

Network Connectivity

Connect via Wi-Fi or Ethernet

Wireless Connectivity

IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz

Ethernet Port

Yes

RTSP

Yes

ONVIF

Yes

Security

SSL/TLS,AES

Power Source

12V DC Power Adapter

Input Voltage

100-240 V, 50/60 Hz

Output Voltage

12 V, 1 A (DC Power)

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP66

System Requirements

Tapo App: iOS 12.0+ and Android 5.0+ operating systems.

Mounting Options

Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)

Operating Temperature

-30℃~60℃ (-22°F~140°F)

Storage Temperature

-40℃~60℃ (-40°F~140°F)

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

0~90% RH, Non-condensing
