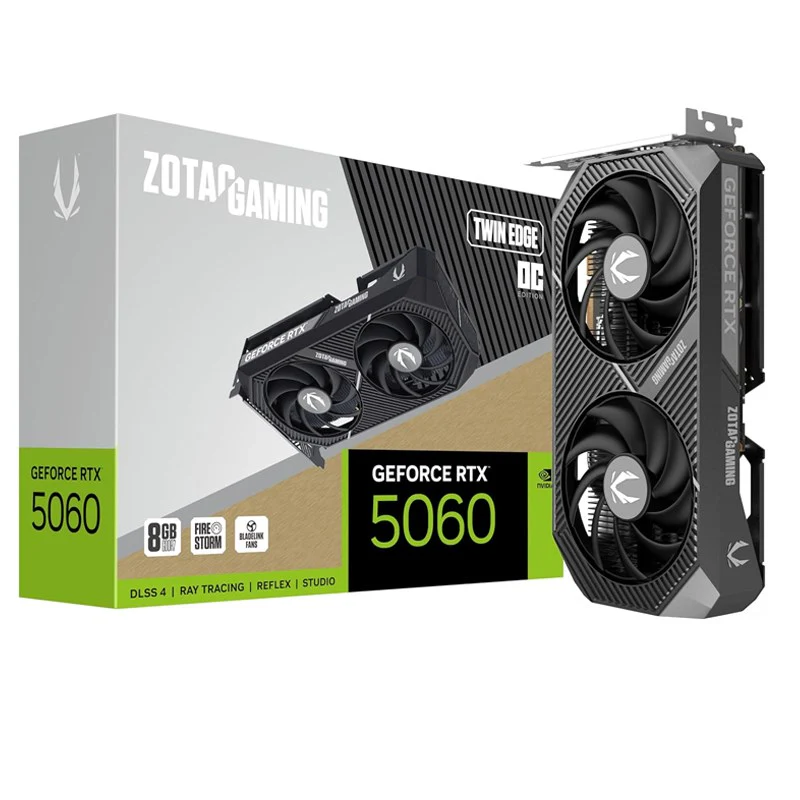

Zotac GAMING Twin Edge GeForce RTX 5060 8GB OC GDDR7 Graphics Card

Zotac GAMING Twin Edge

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a strong factory OC and solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.

RTX. It’s On.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

What are the benefits of Zotac GeForce RTX 5060 8GB Graphics Card ?

• Powered by NVIDIA Blackwell architecture for advanced performance and efficiency

• 8 GB GDDR7 memory for faster data handling and smoother gameplay

• Factory overclocked for improved out-of-the-box performance

• Compact Twin Edge design fits easily in smaller PC builds

• Supports ray tracing for highly realistic lighting and visuals

• DLSS 4 with AI frame generation boosts FPS and overall performance

• Optimized for modern games and creative applications

GPU

NVIDIA GeForce RTX 5060 GPU

CUDA cores

3840

Video Memory

8 GB GDDR7

Memory Bus

128-bit

Engine Clock

2527 MHz

Memory Clock

28 Gbps

AI TOPS

614

PCI Express

PCI Express 5.0 x8

Display Outputs

3 x DisplayPort 2.1b with UHBR20

(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI Connector

(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

HDCP Support

2.3

Multi Display Capability

Quad Display

Recommended Power Supply

550W

Power Consumption

145W

Power Input

1 x 8-pin power input

DirectX

Microsoft DirectX 12 Ultimate

OpenGL

4.6

Cooling

Air Cooled

Slot Size

2

SLI

No

Supported OS

Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length

220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"

Accessories

User Manual
