Mac Desktop

Mac Studio is an entirely new Mac desktop. It packs outrageous performance, extensive connectivity, and new capabilities into an unbelievably compact form, putting everything you need within easy reach and transforming any space into a studio. And it all starts with your choice of the ferociously fast M1 Max or the all-new M1 Ultra the most powerful chip ever in a personal computer.

System

Apple silicon has transformed our Mac lineup, bringing unbelievable performance and power efficiency with its breakthrough system on a chip (SoC) architecture. Combining the CPU, GPU, I/O, Neural Engine, and more into a single SoC with unified memory, this architecture means all Mac computers are way faster, cooler, and more power-efficient. To complete the M1 family, we took another giant leap with Apple silicon to bring even more extreme levels of performance for the desktop.

Ability To Connect

The incredible M1 Ultra chip actually starts with M1 Max. From its inception, M1 Max has held the ability to connect to another M1 Max die using a custom-built packaging architecture called UltraFusion. With twice the connection density of any technology available, UltraFusion provides a massive 2.5TB/s of low-latency interprocessor bandwidth between the two dies using very little power.

M1 Max CPU Performance vs. Power

M1 Max delivers similar multithreaded CPU performance to the latest 10-core PC desktop chip while using 65 percent less power.

Professional-Quality

M1 Max brings power to tackle challenges of almost any size. Whether you’re running multiple apps, sorting and editing thousands of photos, recording and mixing professional-quality music, or discovering a new exoplanet, the screaming-fast M1 Max has your back.

Power And Efficiency

The Incredible Power And Efficiency Of Apple Silicon Have allowed us to completely reimagine the high-performance desktop. The design inspiration for Mac Studio was simple: to let M1 Max or M1 Ultra — and your creativity — run completely unrestrained, within the smallest possible footprint. It fits perfectly under most displays, putting prodigious power and connectivity at arm’s reach, right on your desk.

Plays It Cool

Within the 7.7"-square Mac Studio enclosure lies a groundbreaking thermal system designed to let M1 Max or M1 Ultra fly through heavy workloads at screaming-fast speeds — and stay whisper quiet.

Brand

Apple

Type

Desktop

Color

Silver

Chip

10-core CPU with 8 performance cores and 2 efficiency cores
24-core GPU
16-core Neural Engine

Memory

32 GB

Storage

512 GB

Video Support

Simultaneously supports up to five displays
Thunderbolt 4 digital video output supports
Native DisplayPort output over USB‑C
HDMI display video output

Audio

Built-in speaker

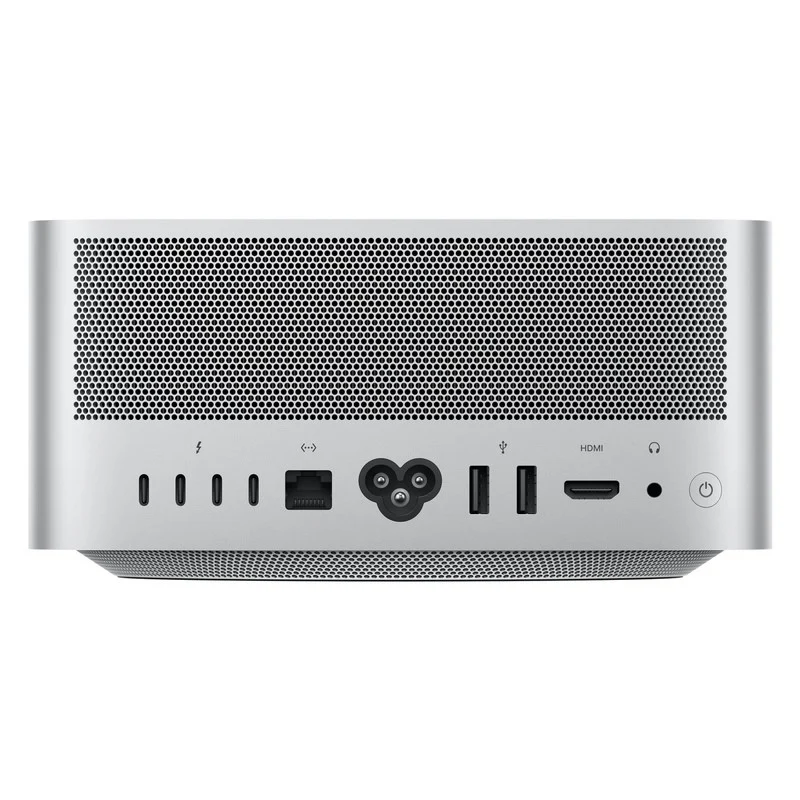

Connections and Expansion

Four Thunderbolt 4 ports with support for:
Thunderbolt 4 (up to 40Gb/s)
DisplayPort
USB 4 (up to 40Gb/s)
USB 3.1 Gen 2 (up to 10Gb/s)
Two USB-A ports (up to 5Gb/s)
HDMI port
10Gb Ethernet
3.5 mm headphone jack

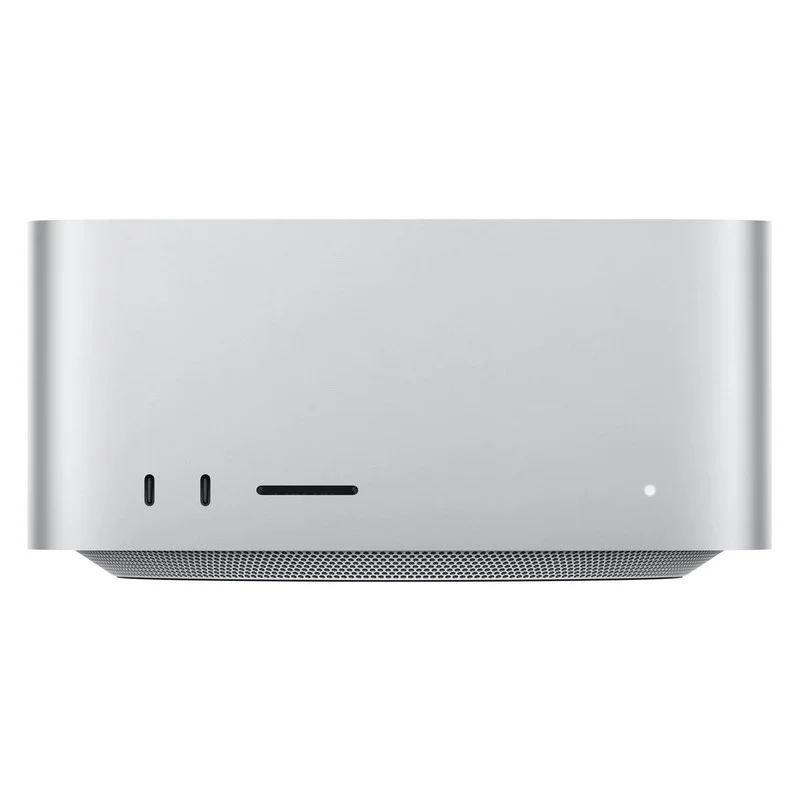

On the front (M1 Max):
Two USB-C ports (up to 10Gb/s)
SDXC card slot (UHS-II)
On the front (M1 Ultra):
Two Thunderbolt 4 ports (up to 40Gb/s)
SDXC card slot (UHS-II)

Communications

Wi-Fi
802.11ax Wi-Fi 6 wireless networking
IEEE 802.11a/b/g/n/ac compatible
Bluetooth
Bluetooth 5.0 wireless technology
Ethernet
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

Height: 3.7" (9.5 cm)
Width: 7.7" (19.7 cm)
Depth: 7.7" (19.7 cm)
Weight (M1 Max): 5.9 lb (2.7 kg)

Electrical and Operating Requirements

Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 370W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 90% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)

Operating System

macOS
