LIAN LI O11 DYNAMIC EVO Tempered Glass E-ATX Gaming PC Case - Harbor Grey

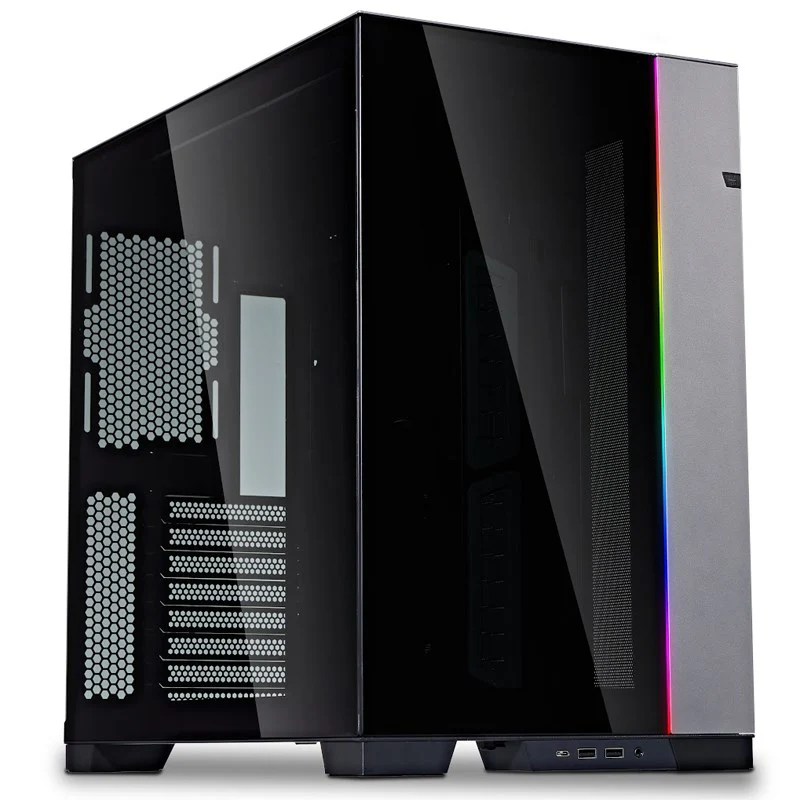

Product image 1
1 / 11
+6

LIAN LI O11 DYNAMIC EVO Tempered Glass E-ATX Gaming PC Case - Harbor Grey

O11 DYNAMIC EVO

Specifications:

Model Name

O11 DYNAMIC EVO

Dimension

(D)465mm × (W)285mm × (H)459mm

Material

4mm Aluminum



4mm Tempered Glass



1mm Steel Structure

Motherboard Support

E-ATX (width: under 280mm)/ATX /M-ATX/ITX

PSU Support

220mm

Fan Support

Top: 120mm × 3 or 140mm × 2



Side: 120mm × 3 or 140mm × 2



Bottom: 120mm × 3 or 140mm × 2



Rear: 120mm × 1



On Drive Cage: 60mm × 1

Radiator Support

Top: 360mm × 1 or 280mm × 1



*Total max thickness: 87.5mm



Side: 360mm × 1 or 280mm × 1



*Inner scenario total max thickness:



83mm(120mm fan on top and bottom)



63mm(140mm fan on top and bottom)



*Outer scenario total max. thickness：



120mm(120mm fan on top and bottom)



100mm(140mm fan on top and bottom)



Bottom: 360mm × 1



*Total max thickness: 87.5mm

Drive Support

Bottom：2.5” SSD × 4 or 3.5” HDD × 2



Side：2.5” SSD × 4 or 3.5” HDD × 2



Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1



Cable Management Bar：2.5” SSD × 2



*Only 9 sets of 2.5” SSD mounting pads are provided

GPU Length Clearance

426 mm

CPU Height Clearance

167 mm

Expansion Slots

8

I/O Ports

2 × USB 3.0



1 × USB 3.1 TYPE-C,



1 × HD AUDIO/ MIC



LED Color and Mode button



Reset Button



Power Button

Dust Filter

Bottom × 1

O11 DYNAMIC EVO

Specifications:

Model Name

O11 DYNAMIC EVO

Dimension

(D)465mm × (W)285mm × (H)459mm

Material

4mm Aluminum



4mm Tempered Glass



1mm Steel Structure

Motherboard Support

E-ATX (width: under 280mm)/ATX /M-ATX/ITX

PSU Support

220mm

Fan Support

Top: 120mm × 3 or 140mm × 2



Side: 120mm × 3 or 140mm × 2



Bottom: 120mm × 3 or 140mm × 2



Rear: 120mm × 1



On Drive Cage: 60mm × 1

Radiator Support

Top: 360mm × 1 or 280mm × 1



*Total max thickness: 87.5mm



Side: 360mm × 1 or 280mm × 1



*Inner scenario total max thickness:



83mm(120mm fan on top and bottom)



63mm(140mm fan on top and bottom)



*Outer scenario total max. thickness：



120mm(120mm fan on top and bottom)



100mm(140mm fan on top and bottom)



Bottom: 360mm × 1



*Total max thickness: 87.5mm

Drive Support

Bottom：2.5” SSD × 4 or 3.5” HDD × 2



Side：2.5” SSD × 4 or 3.5” HDD × 2



Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1



Cable Management Bar：2.5” SSD × 2



*Only 9 sets of 2.5” SSD mounting pads are provided

GPU Length Clearance

426 mm

CPU Height Clearance

167 mm

Expansion Slots

8

I/O Ports

2 × USB 3.0



1 × USB 3.1 TYPE-C,



1 × HD AUDIO/ MIC



LED Color and Mode button



Reset Button



Power Button

Dust Filter

Bottom × 1
$177.78
LIAN LI O11 DYNAMIC EVO Tempered Glass E-ATX Gaming PC Case - Harbor Grey—
$177.78

Description

O11 DYNAMIC EVO

Specifications:

Model Name

O11 DYNAMIC EVO

Dimension

(D)465mm × (W)285mm × (H)459mm

Material

4mm Aluminum



4mm Tempered Glass



1mm Steel Structure

Motherboard Support

E-ATX (width: under 280mm)/ATX /M-ATX/ITX

PSU Support

220mm

Fan Support

Top: 120mm × 3 or 140mm × 2



Side: 120mm × 3 or 140mm × 2



Bottom: 120mm × 3 or 140mm × 2



Rear: 120mm × 1



On Drive Cage: 60mm × 1

Radiator Support

Top: 360mm × 1 or 280mm × 1



*Total max thickness: 87.5mm



Side: 360mm × 1 or 280mm × 1



*Inner scenario total max thickness:



83mm(120mm fan on top and bottom)



63mm(140mm fan on top and bottom)



*Outer scenario total max. thickness：



120mm(120mm fan on top and bottom)



100mm(140mm fan on top and bottom)



Bottom: 360mm × 1



*Total max thickness: 87.5mm

Drive Support

Bottom：2.5” SSD × 4 or 3.5” HDD × 2



Side：2.5” SSD × 4 or 3.5” HDD × 2



Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1



Cable Management Bar：2.5” SSD × 2



*Only 9 sets of 2.5” SSD mounting pads are provided

GPU Length Clearance

426 mm

CPU Height Clearance

167 mm

Expansion Slots

8

I/O Ports

2 × USB 3.0



1 × USB 3.1 TYPE-C,



1 × HD AUDIO/ MIC



LED Color and Mode button



Reset Button



Power Button

Dust Filter

Bottom × 1
